0.5HP -1HP I Series Intelligent Self-Priming Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Output Power Current n=2850r/min Tank
Q.max H.max Scut.max
kW HP A L/min m m (L)
I-250 0.25 0.3 1.8 30 30 9 2
I-370 0.37 0.5 2.6 35 35 9 2
I-550 0.55 0.75 3.6 50 50 9 2
I-750 0.75 1 4.9 55 55 9 2

Product Detail

Product Tags

APPLICATION

product-description1

I series Self-priming Water Pump

The Smart Self-Priming Water Pump, a revolutionary product that brings convenience and efficiency to your everyday water pumping needs. Designed with cutting-edge technology, this innovative pump combines smart features and powerful performance, making it the perfect solution for both residential and commercial use.

With its self-priming feature, this water pump eliminates the hassle of manually starting the system before each use. Whether you're pumping water from a well, tank, or any other source, this smart pump will automatically activate, saving you time and effort. Say goodbye to tedious start-up procedures and experience unprecedented easy pumping.

What sets this pump apart in the market is its intelligent control system. The pump is equipped with advanced sensors and a user-friendly interface to ensure smooth operation and optimum performance. Its automatic shutoff feature prevents any potential damage from operating the pump without water, giving you peace of mind and avoiding unnecessary repair costs.

The smart self-priming water pump also has excellent durability and service life. Made from high-quality materials, it is designed to withstand harsh environmental conditions and provide reliable performance for years to come. Whether you need to pump water for irrigation, housework, or any other purpose, this pump has it all.

Plus, this water pump is energy efficient, helping you save on your electricity bills while reducing your carbon footprint. Its smart motor adjusts power consumption according to water demand, ensuring efficient operation without unnecessary waste of energy. Experience a greener, more sustainable pumping solution with this smart pump.

Working Situation

Max Suction: 9M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body: Cast Iron / Cast Iron with brass insert
Impeller: Brass/Plastic with brass insert
Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Steel-plate
Shaft: Carbon Steel/Stainless Steel
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation

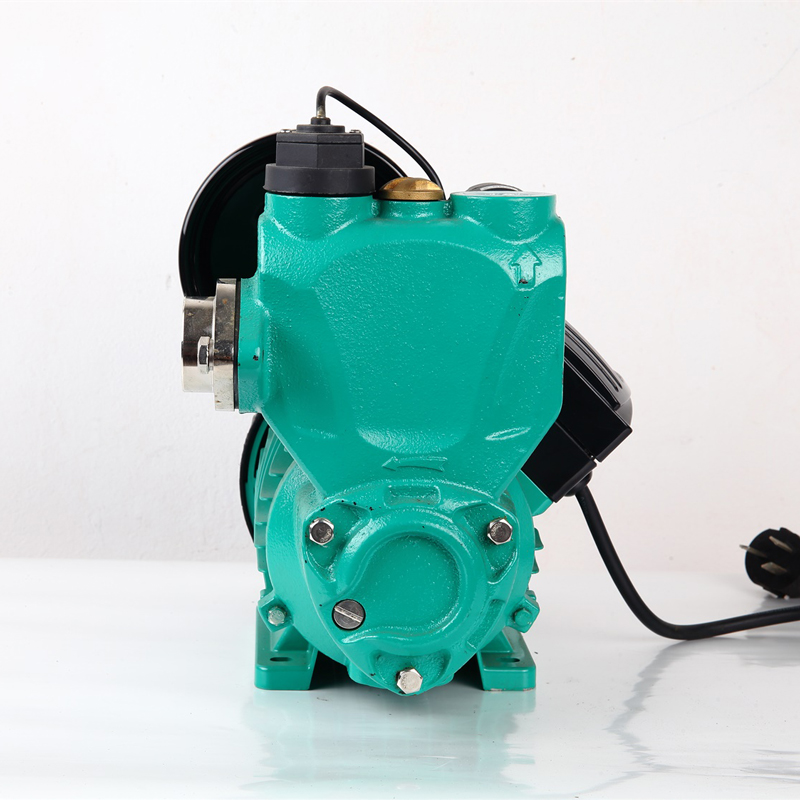

PICTURES OF PUMP

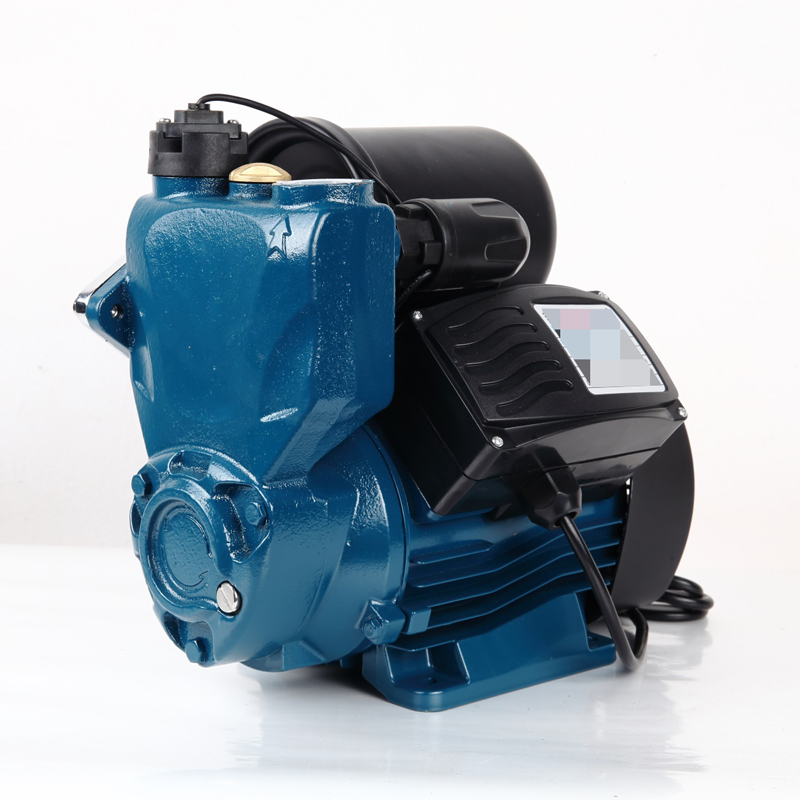

0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump6

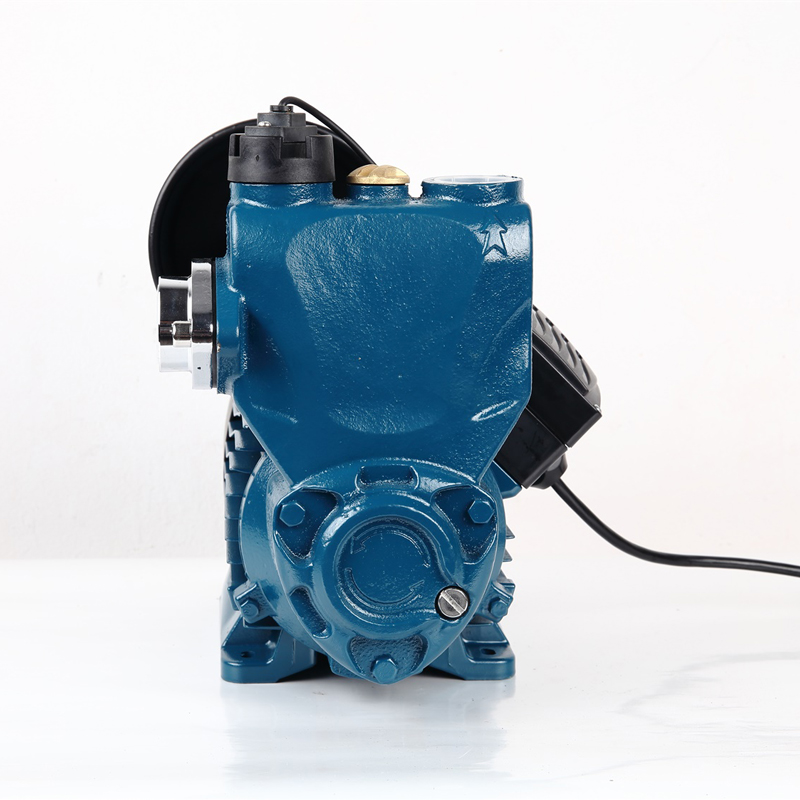

0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump5

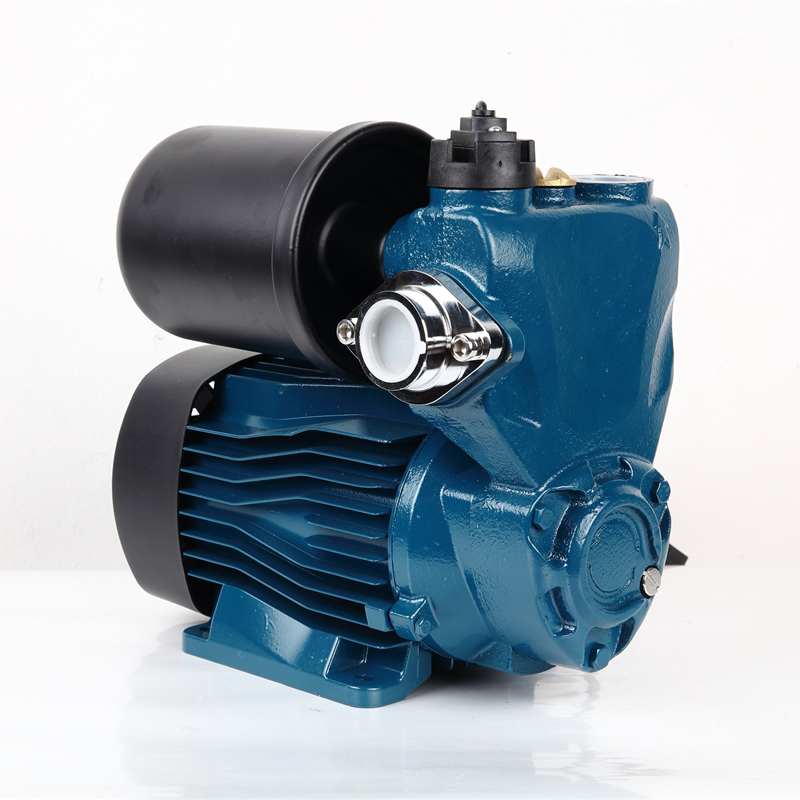

0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump3

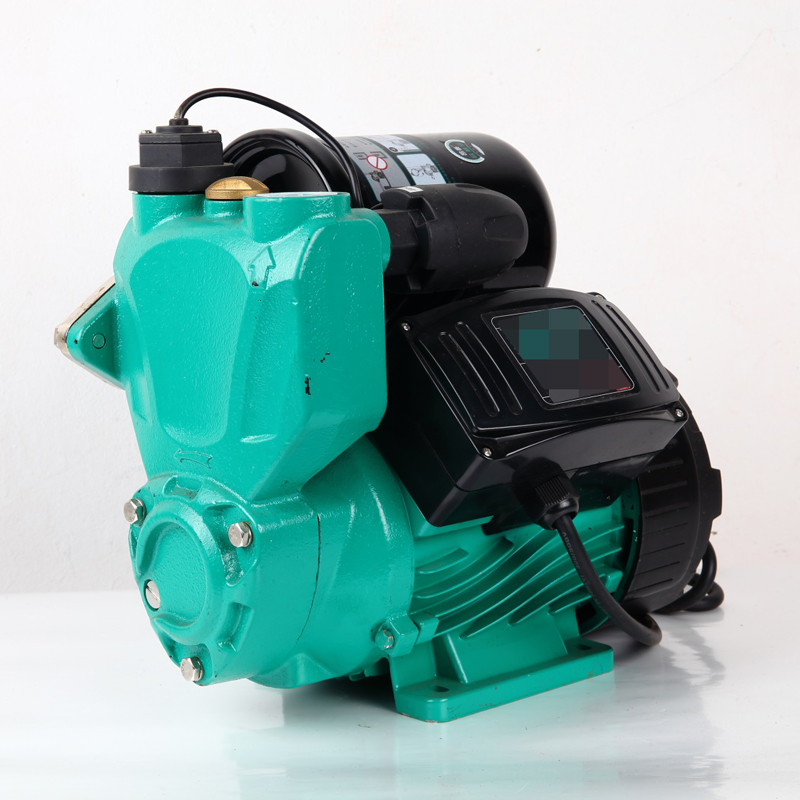

0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump7
0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump9

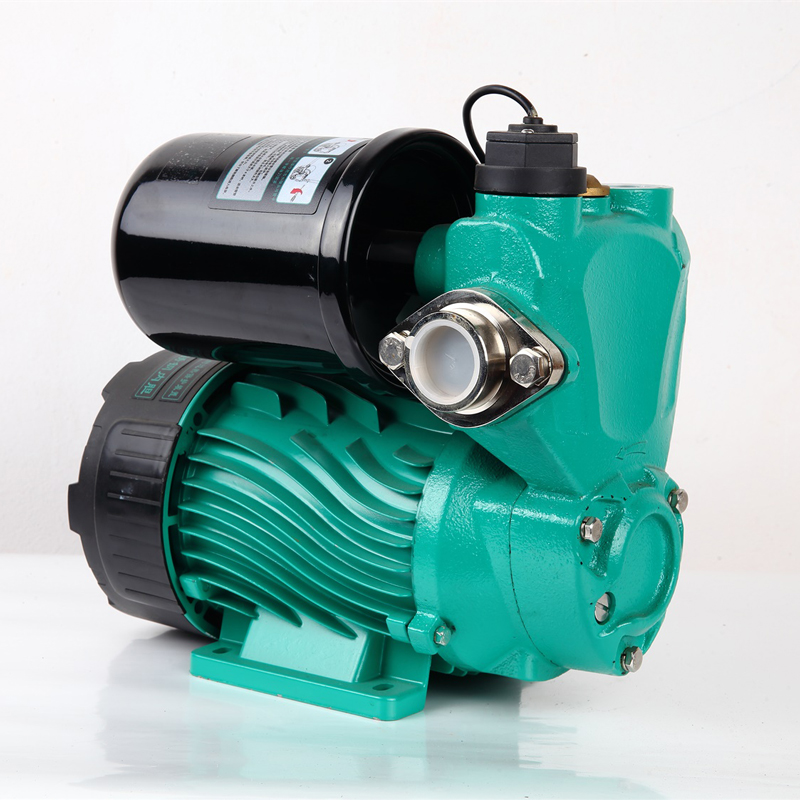

0.5HP--1HP-I-Series-Intelligent-Self-Priming-Water-Pump10

PRODUCT SPECIFICATIONS

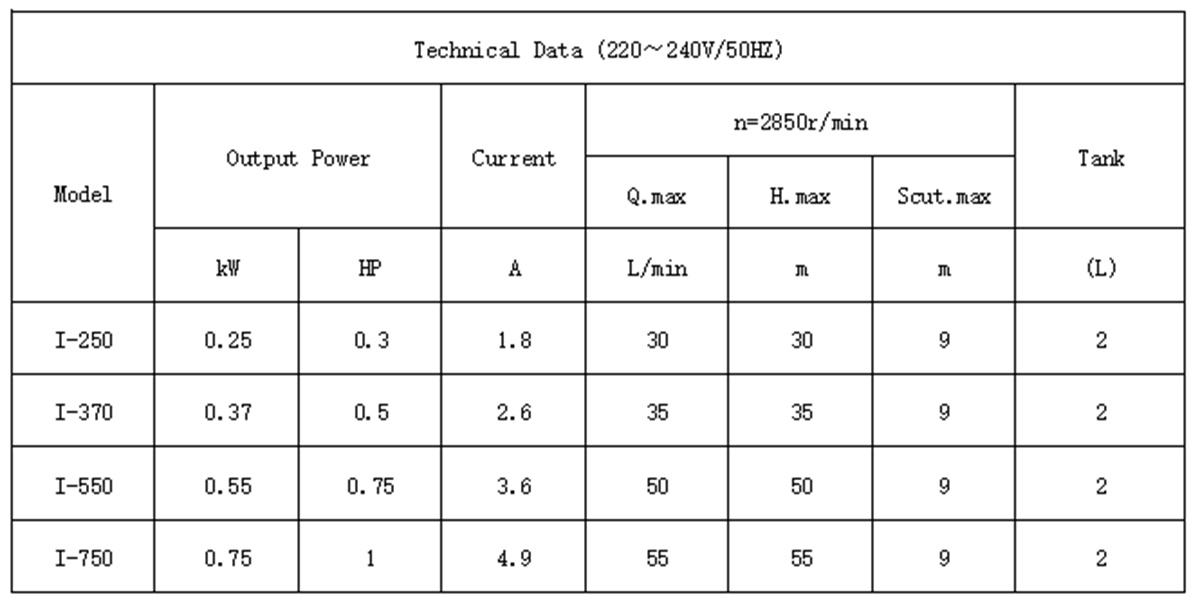

TECHNICAL DATA

product description02

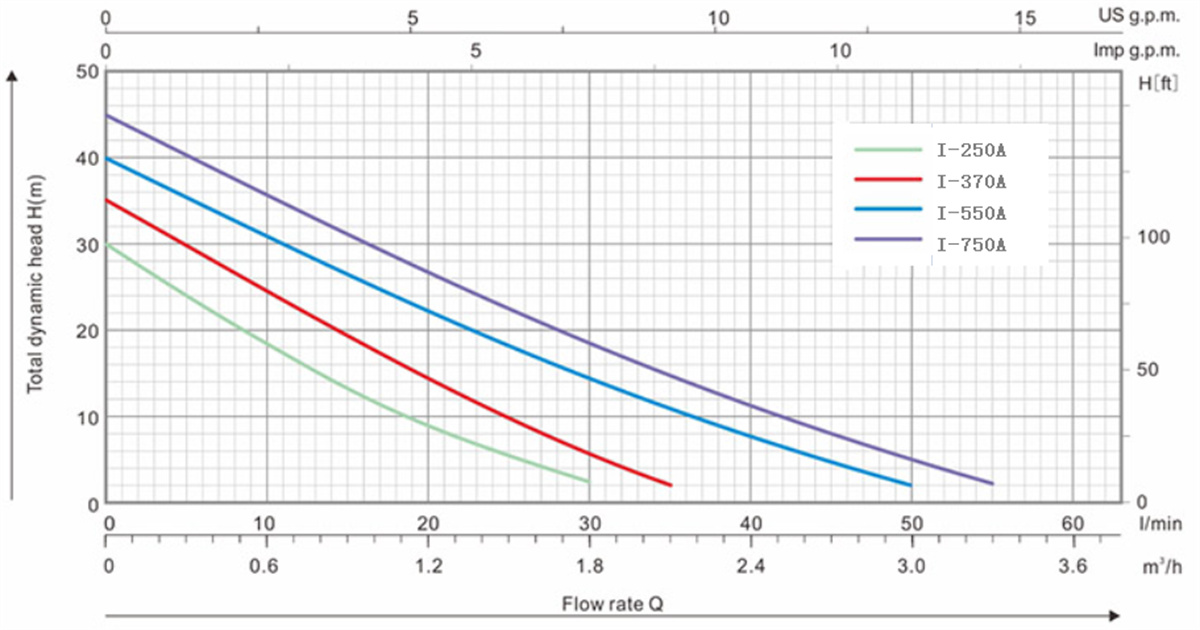

PERFORMANCE CHART AT N=2850min

product description04

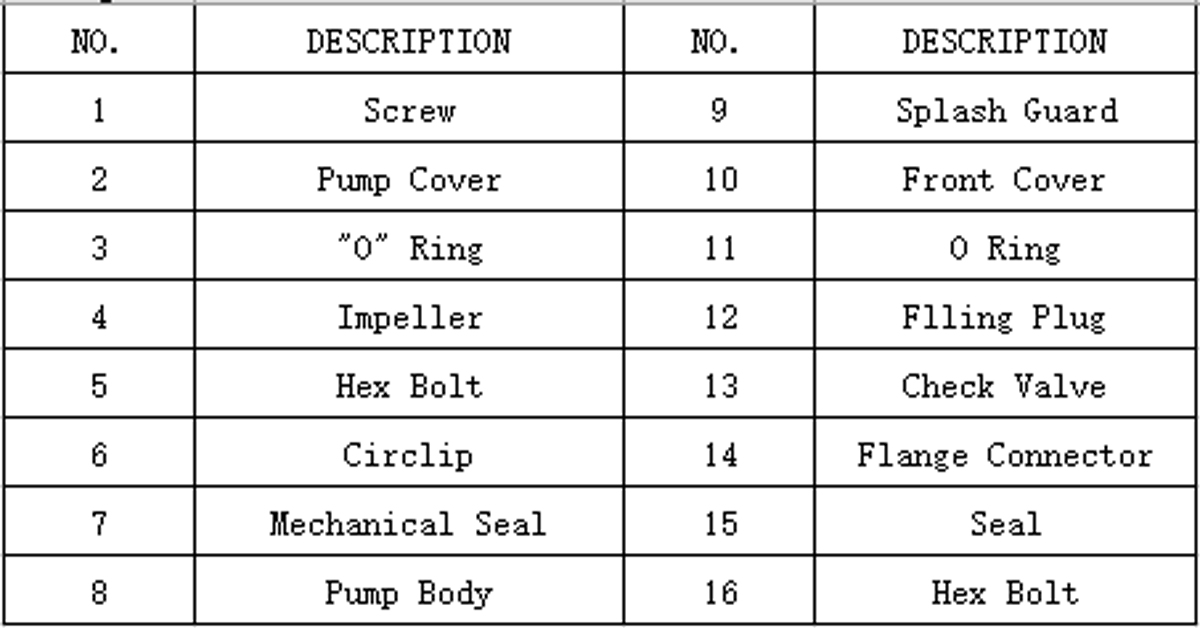

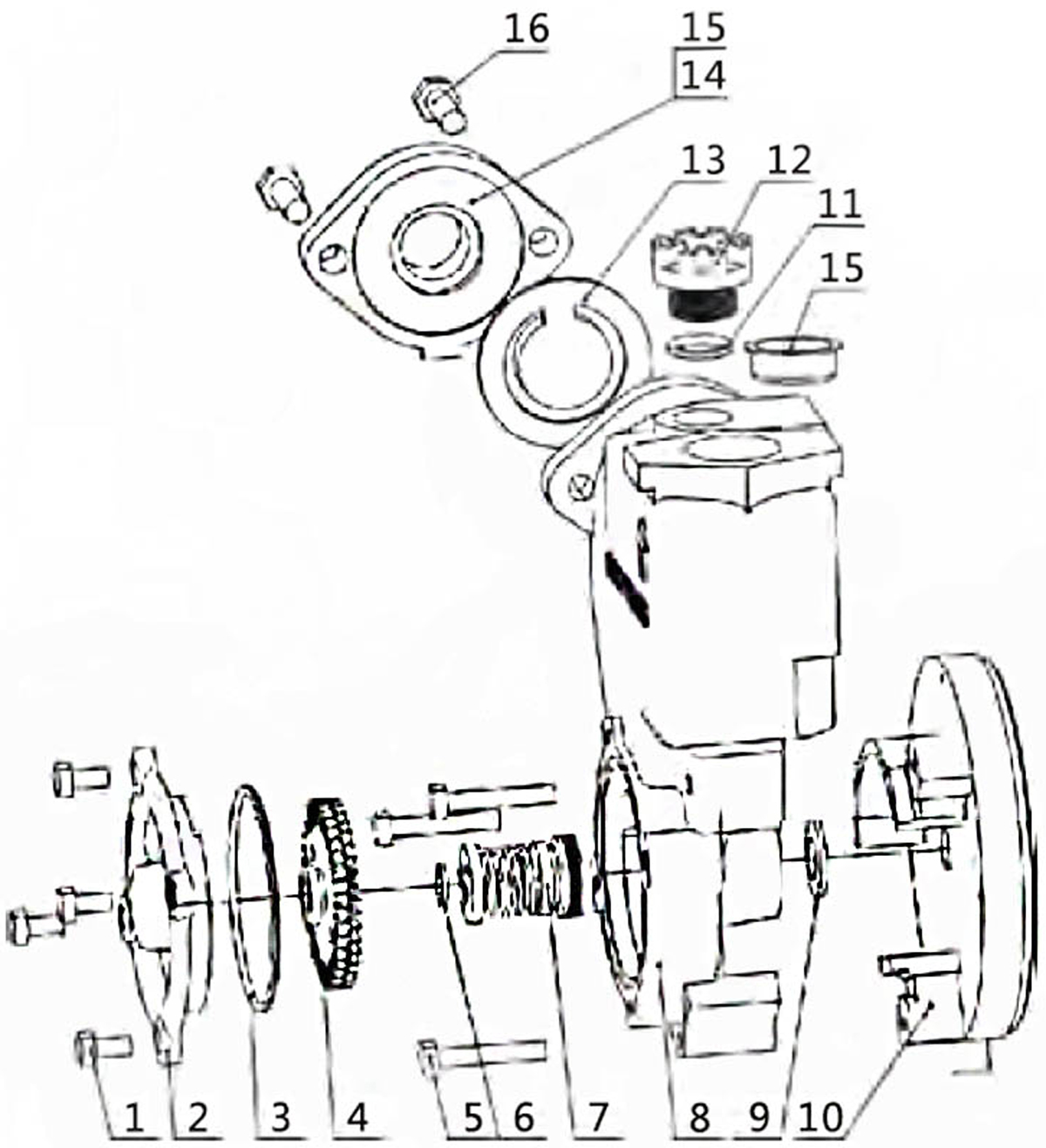

STRUCTURE OF PUMP

product-description1

product-description2

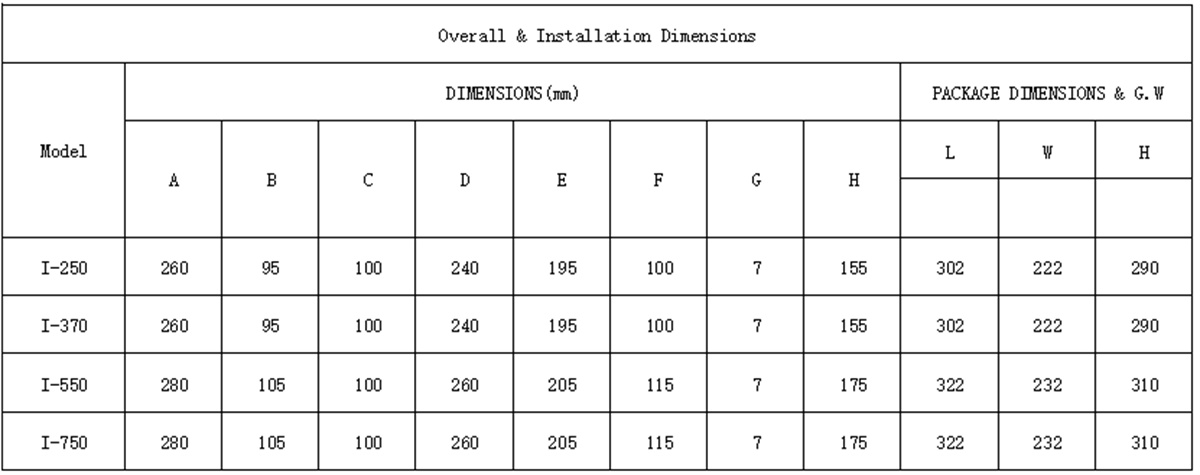

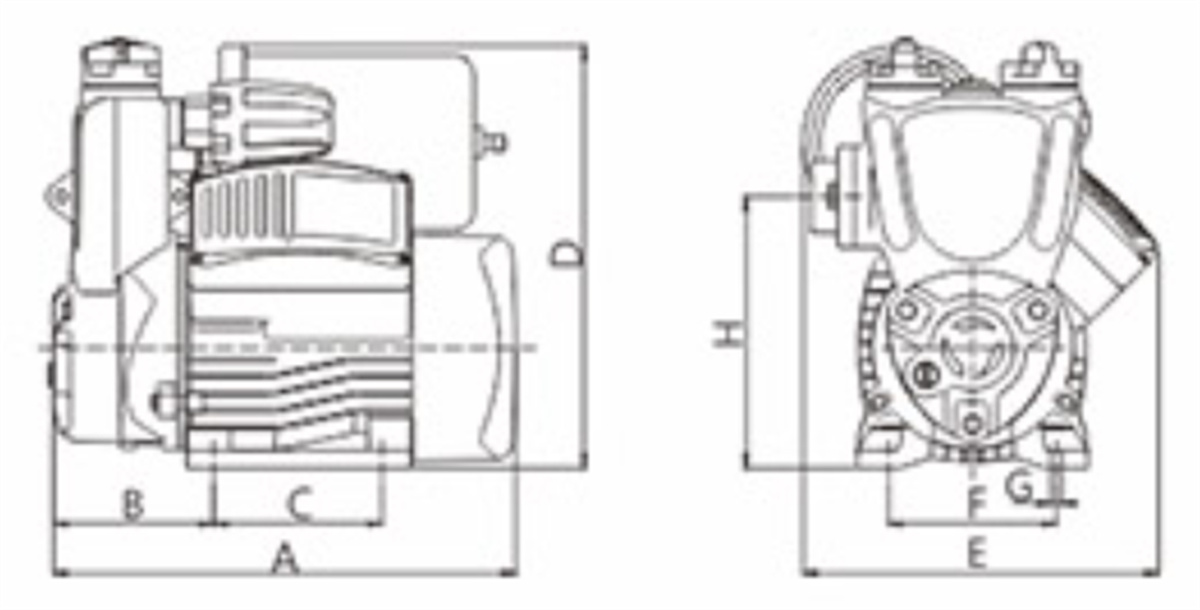

SIZE DETAILS OF PUMP

product description01 product description03

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 30~80mm, you could select them according to your request.
Thermal Protector Optional part
