0.75HP- 2HP KW DK Series Centrifugal Water Pump

Short Description:

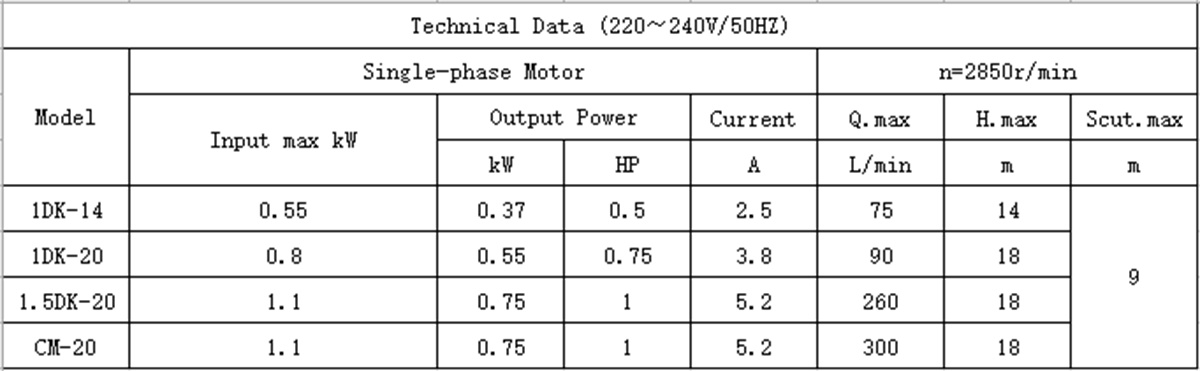

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
1DK-14 0.55 0.37 0.5 2.5 75 14 9
1DK-20 0.8 0.55 0.75 3.8 90 18
1.5DK-20 1.1 0.75 1 5.2 260 18
CM-20 1.1 0.75 1 5.2 300 18

Product Detail

Product Tags

Applicable Scene

product-description1

DK series

Introducing the DK Series Centrifugal Water Pumps, the newest addition to our range of high quality centrifugal pumps. Designed to meet the needs of a wide range of industries, this pump offers exceptional performance and durability, making it the first choice for pumping applications requiring reliable and consistent flow.

The DK Series Centrifugal Water Pump is a versatile machine that can handle a variety of tasks including water transfer, irrigation and drainage. Whether you're pumping water from a well, or watering crops in the field, this pump has the power and efficiency to keep your operation running smoothly.

One of the outstanding features of the DK series is its robust and durable construction. It is made of high-quality materials that easily withstand harsh conditions and harsh environments.

In addition to durability, DK series centrifugal water pumps are also extremely efficient. Its advanced impeller design maximizes flow rates while minimizing energy consumption, helping you save on operating costs. The pump's motor has also been engineered for optimum performance, featuring a high efficiency motor that reduces energy consumption and minimizes maintenance.

DK series centrifugal water pumps are also easy to install and use. Its compact design and lightweight construction make it easy to move, while its simple controls and operation make it friendly to operators of all skill levels. Plus, its low noise output and vibration-free operation ensures it won't disrupt your work environment.

Overall, the DK series centrifugal water pump is a top performing and reliable machine that can handle a range of pumping tasks. With its robust construction, efficient performance and user-friendly design, it is an excellent choice for anyone who needs a reliable and efficient pump for their operations.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body : Cast Iron
Impeller: Brass
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Wire: Copper Wire / Aluminum Wire
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PRODUCT SPECIFICATIONS

TECHNICAL DATA

product description01

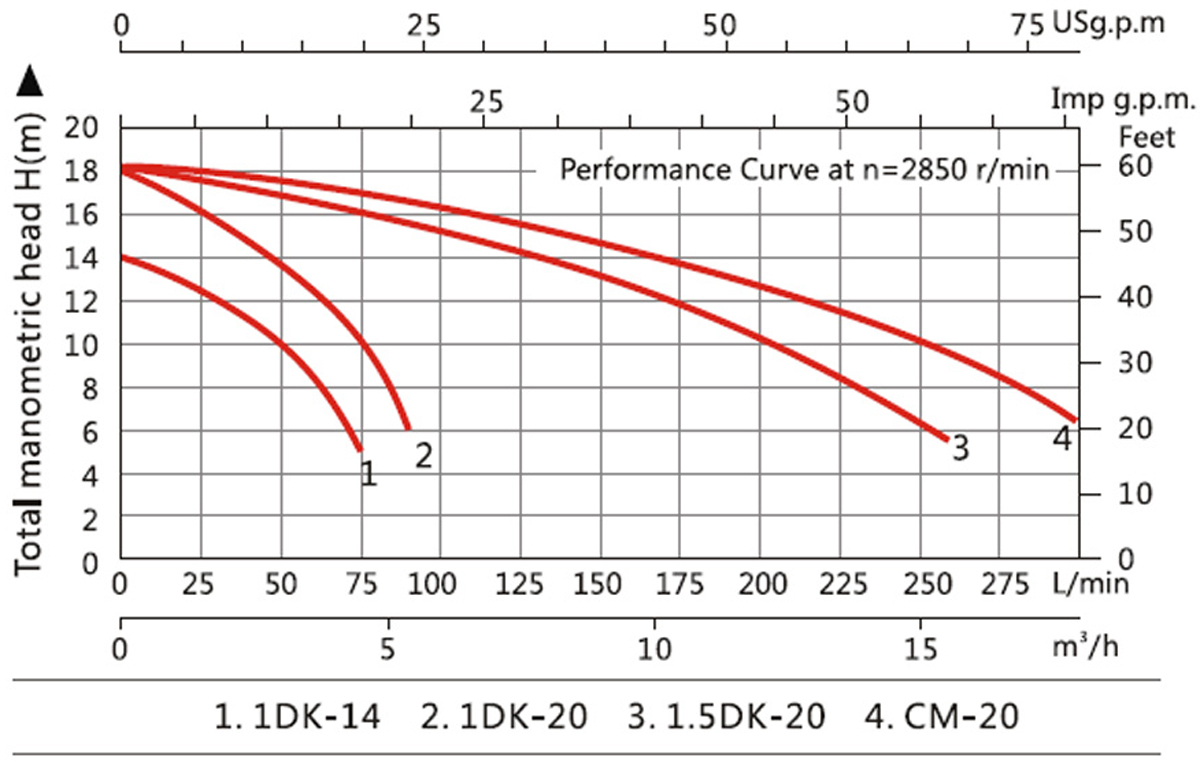

PERFORMANCE CHART AT N=2850min

product-description3

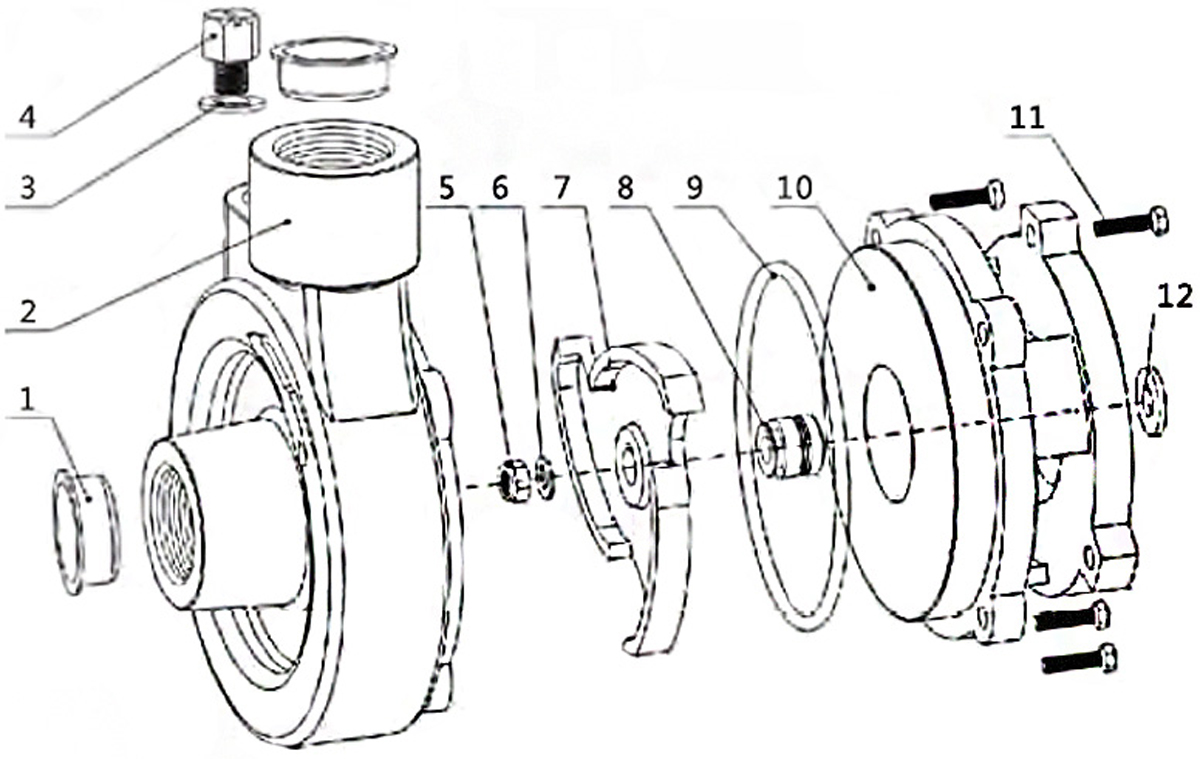

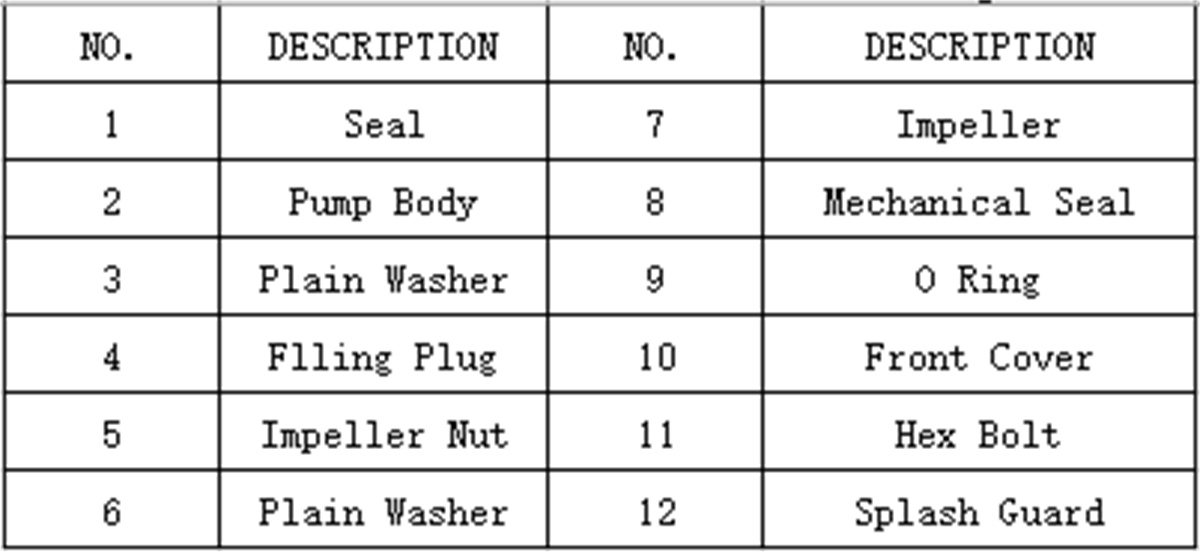

STRUCTURE

product-description2 product description03

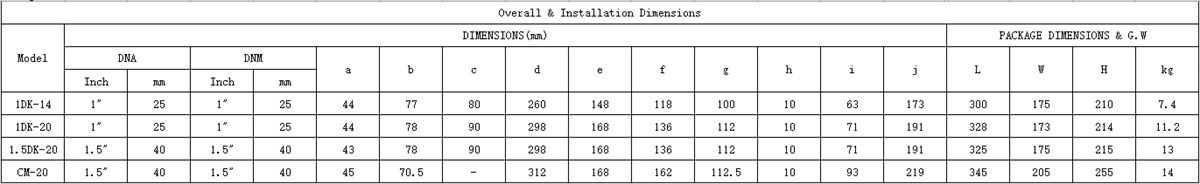

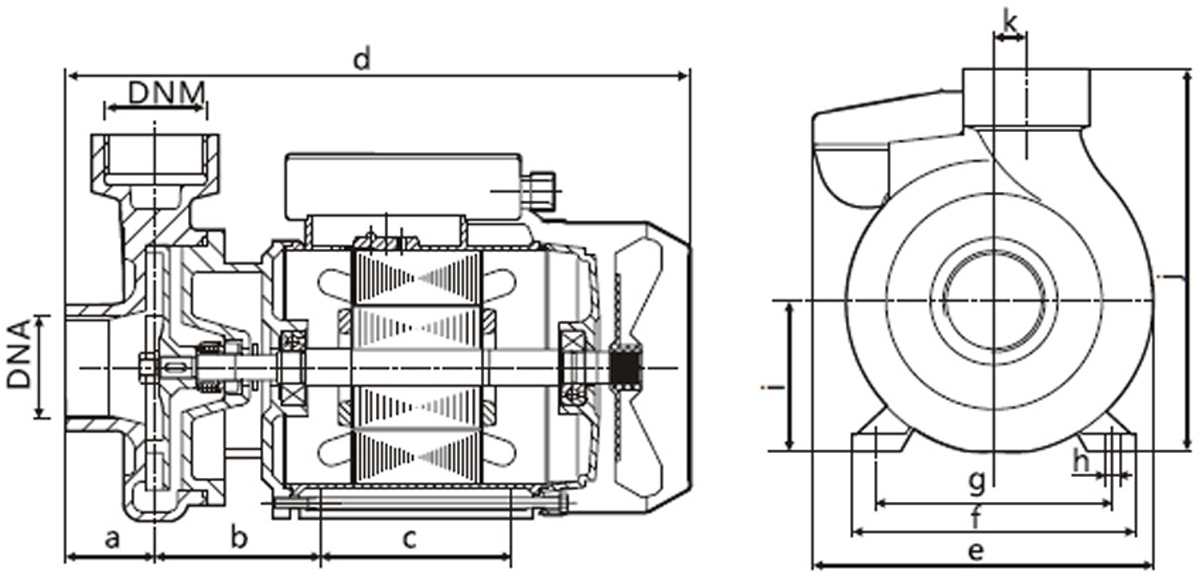

SIZE DETAILS

product-description1 product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 50~130mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
