0.5HP-1HP QB Series Peripheral Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
QB-60/ST/B 0.55 0.37 0.5 2.5 40 40 9
QB-70/ST/B 0.8 0.55 0.75 3.8 45 50
QB-80/ST/B 1.1 0.75 1 5.2 50 55
QB-90 1.5 1.1 1.5 7 80 70

Product Detail

Product Tags

Applicable Scene

product-description1

QB series

The QB water pump has an efficient and powerful motor and can pump up to 50 liters of water per minute. Equipped with a unique peripheral impeller that generates high pressure, it is ideal for pumping water from shallow wells, lakes and storage containers. The pump's durable cast iron construction ensures a long service life.

One of the distinguishing features of perimeter water pumps is their low noise level, making them the perfect choice where quiet operation is required. It also has a compact design, which means it will fit in a variety of spaces and applications. In addition, the pump has a thermal protection function, which can automatically shut down the motor when the motor is overheated, ensuring its reliable and safe use.

QB series is relatively simple construction, not expensive but reliability and safety. They are suitable for pumping clean water. For their reliable performance and economy, QB series pumps are suitable for domestic usage and irrigating garden. To maintain the long duty work of pumps, the water source shall be clean water or non-aggressive liquids only, without sand or other solid impurities.

Working Situation
Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

CONDITIONS PUMP

Pump Body : Cast Iron
Impeller: Brass
Front Cover: Cast Iron
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Wire: Copper Wire / Aluminum Wire
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PRODUCT SPECIFICATIONS

PICTURES OF ITMES

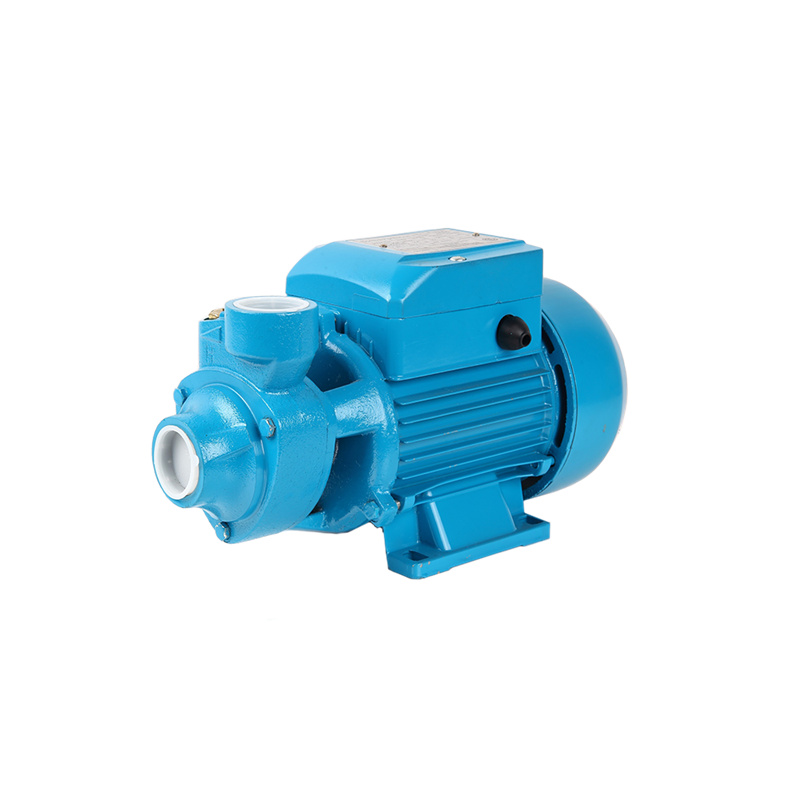

1 2HP 0.37KW QB60 Peripheral Water Pump01

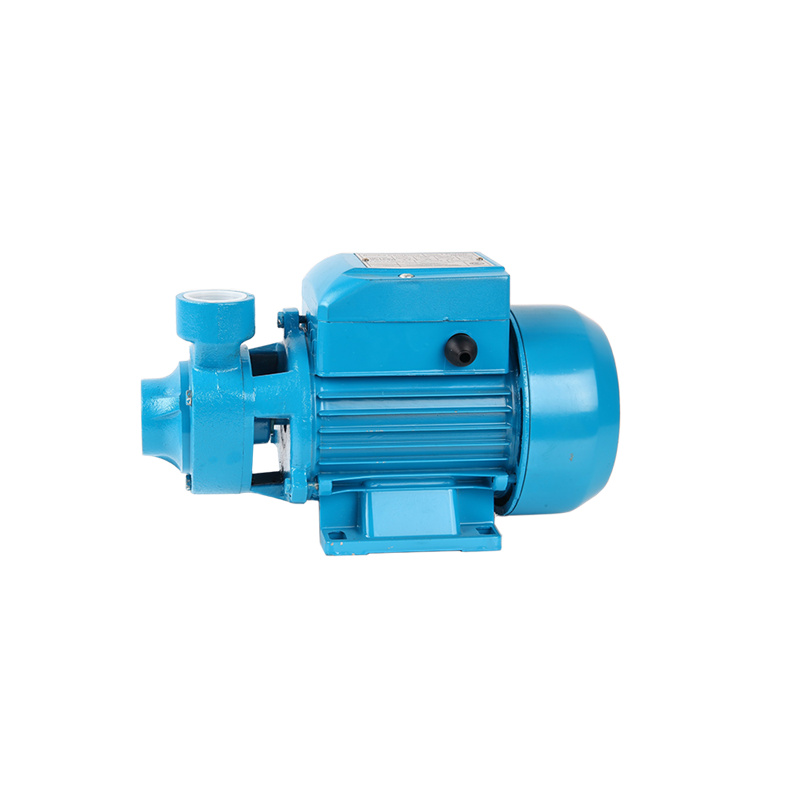

1 2HP 0.37KW QB60 Peripheral Water Pump02

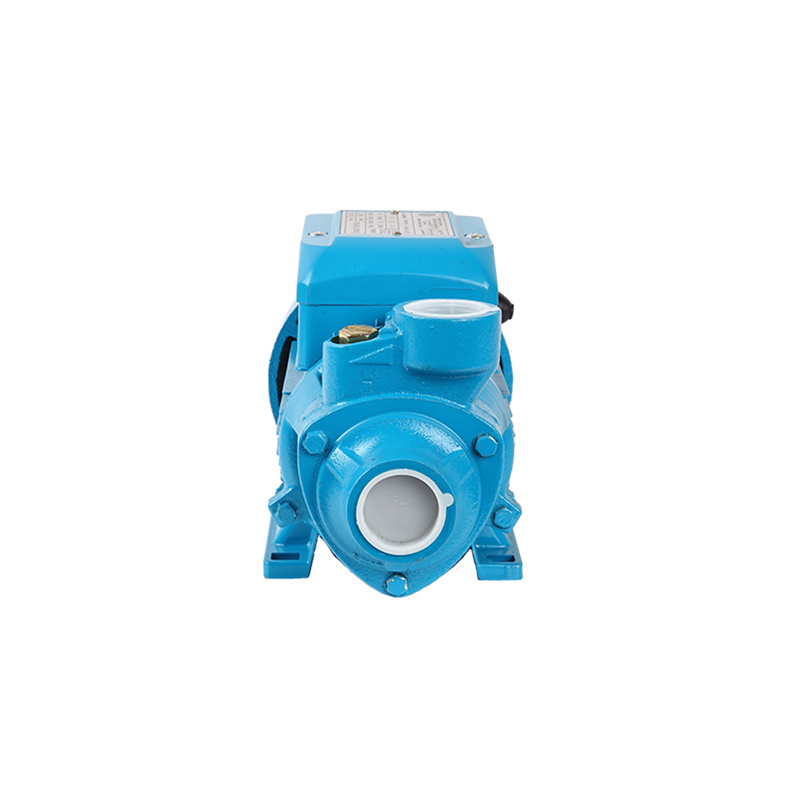

1 2HP 0.37KW QB60 Peripheral Water Pump04

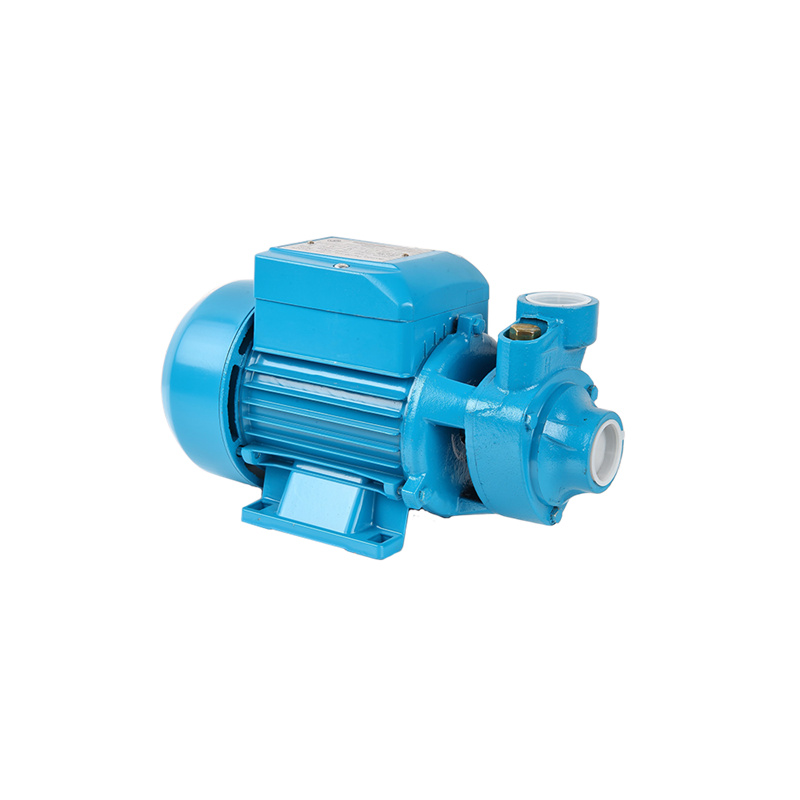

1 2HP 0.37KW QB60 Peripheral Water Pump05

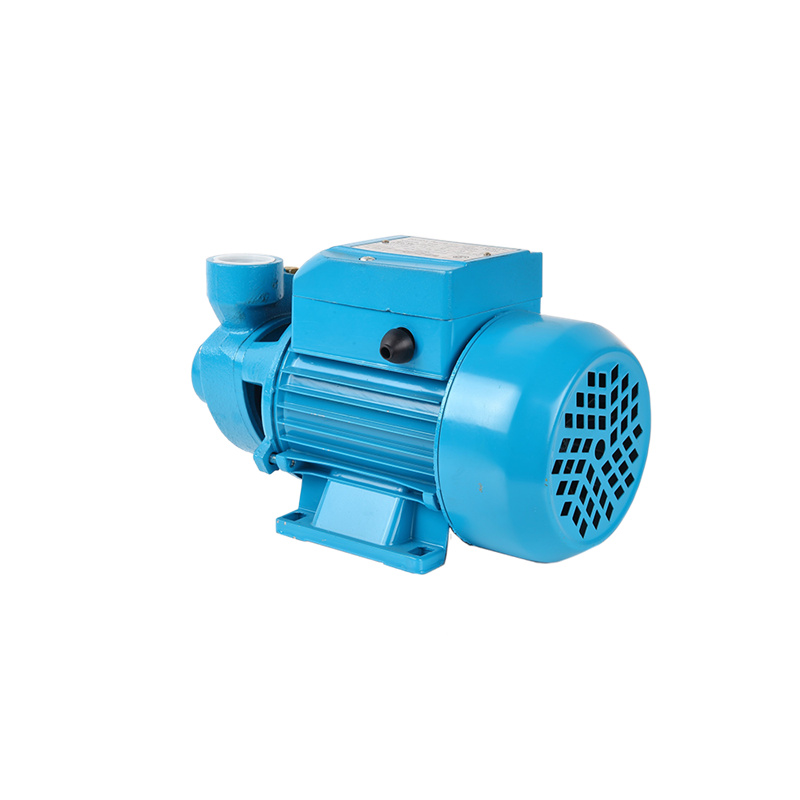

1 2HP 0.37KW QB60 Peripheral Water Pump03

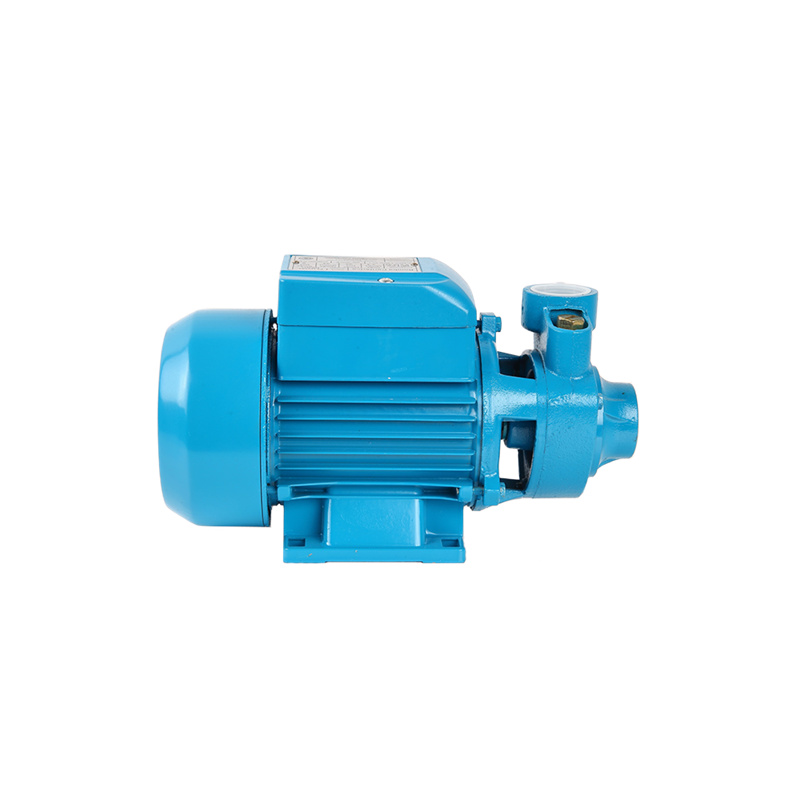

1 2HP 0.37KW QB60 Peripheral Water Pump06

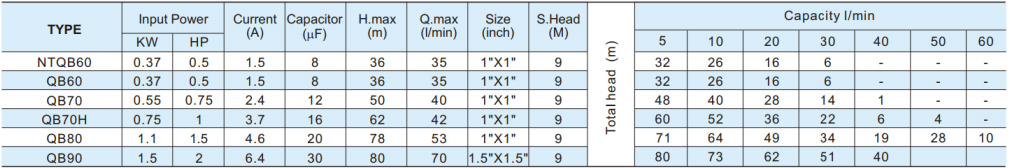

TECHNICAL DATA

product-description4

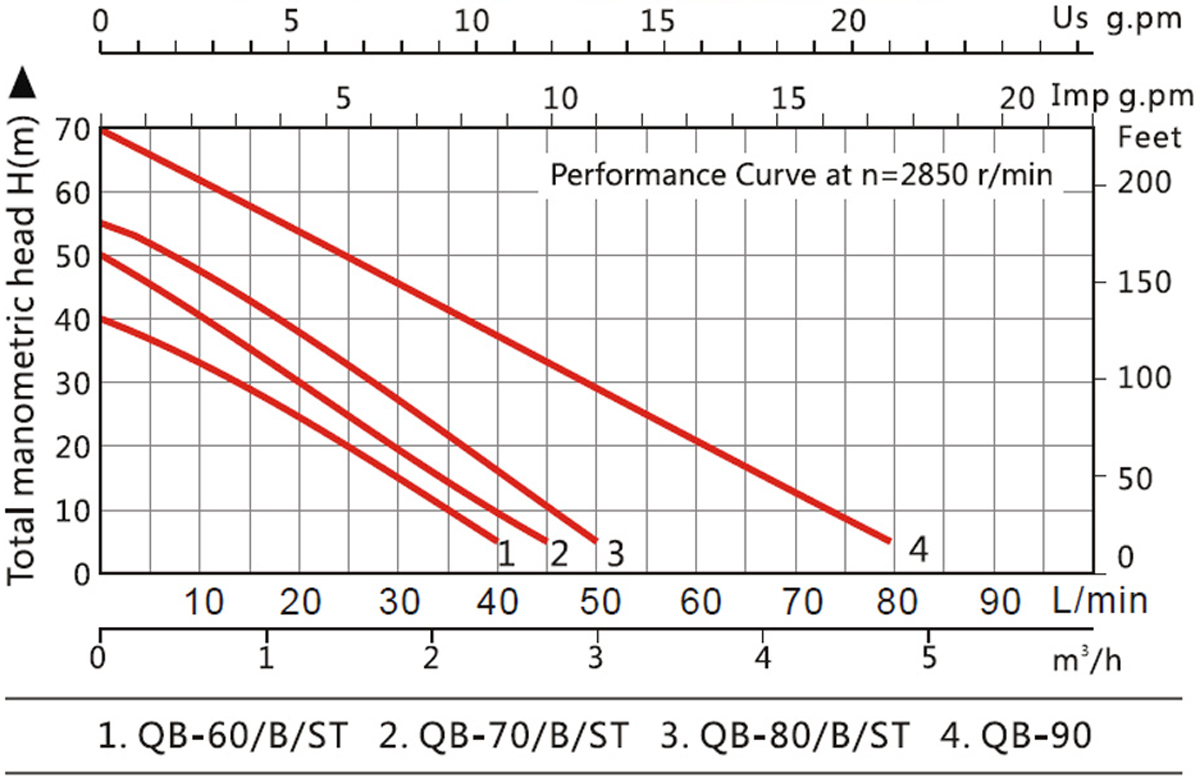

PERFORMANCE CHART AT N=2850min

product-description3

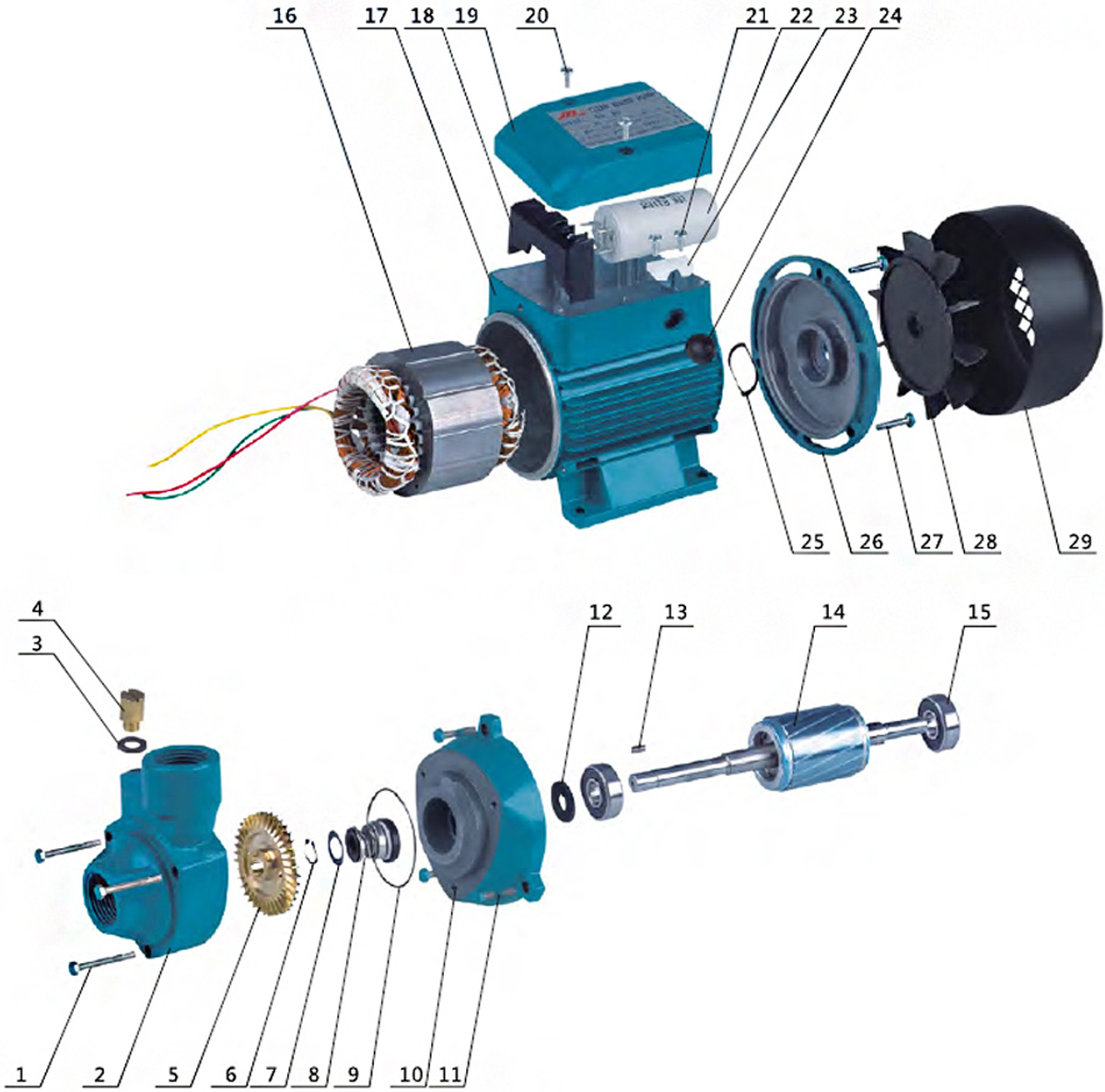

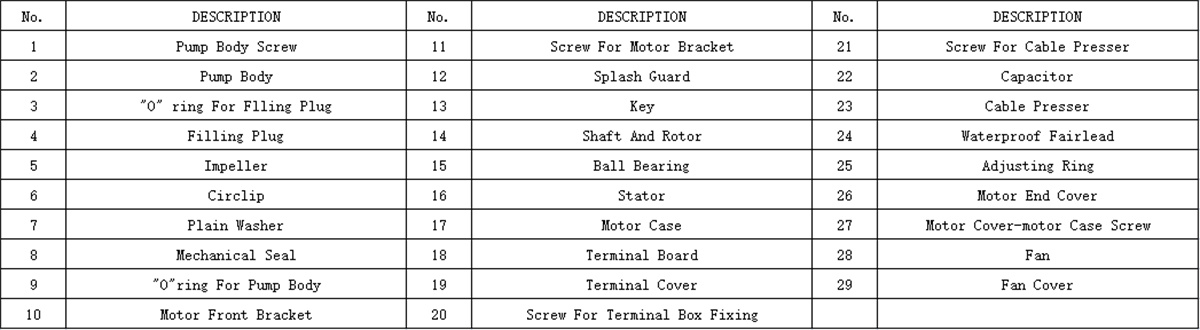

STRUCTURE OF PUMP

product-description1 product description03

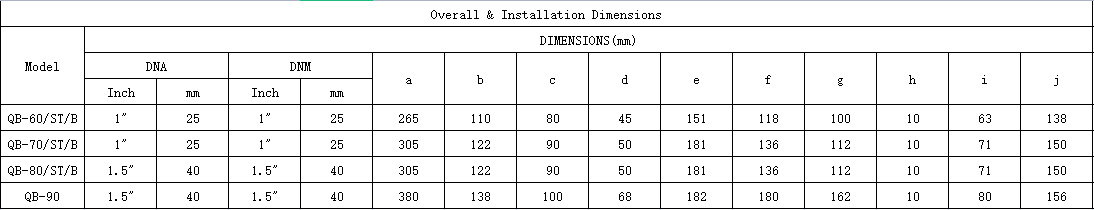

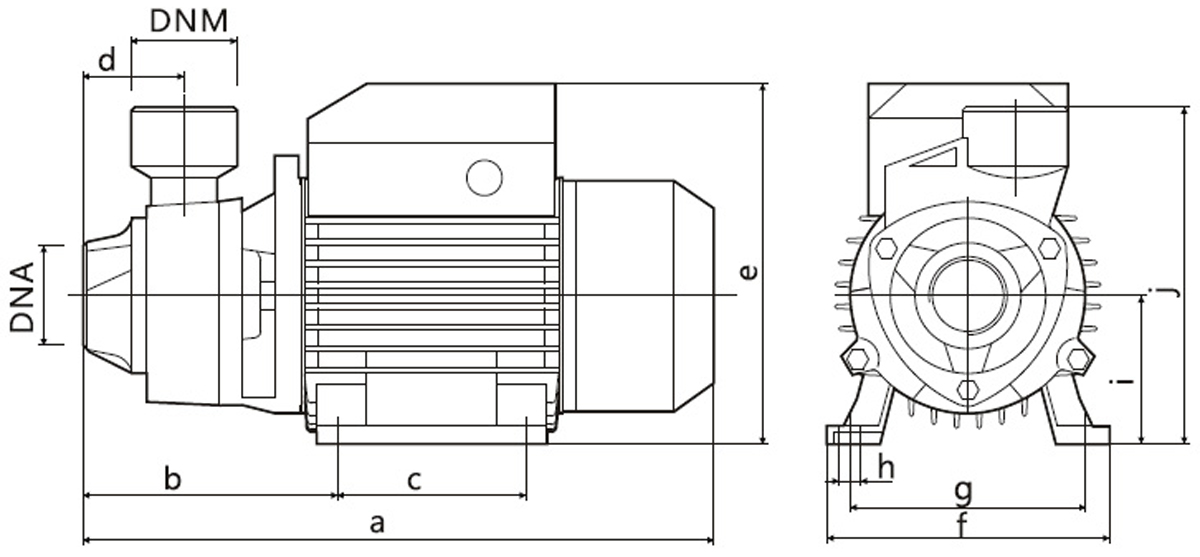

SIZE DETAILS OF PUMP

product-description2

product description01

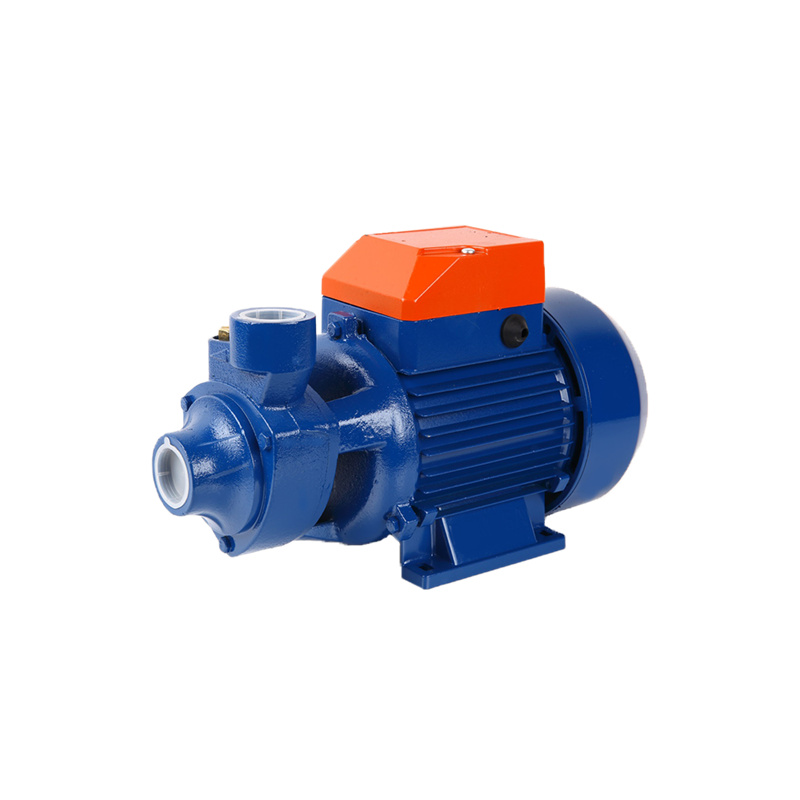

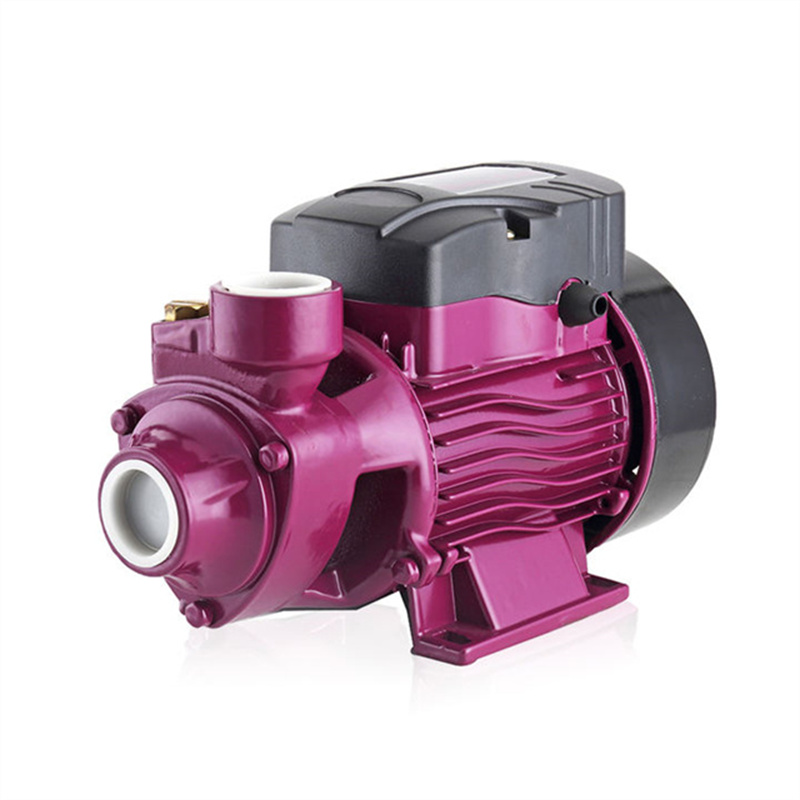

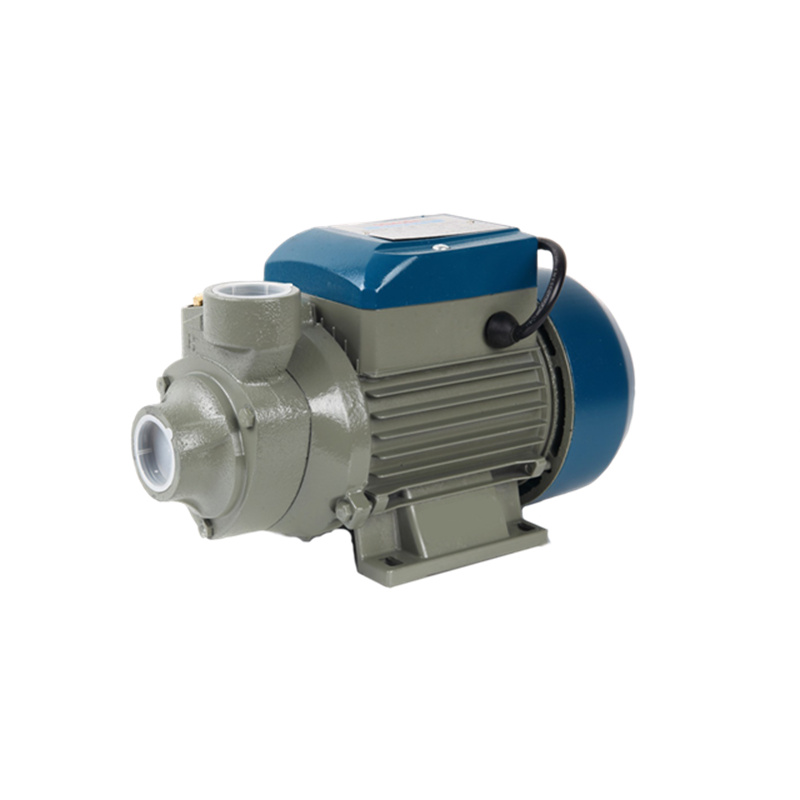

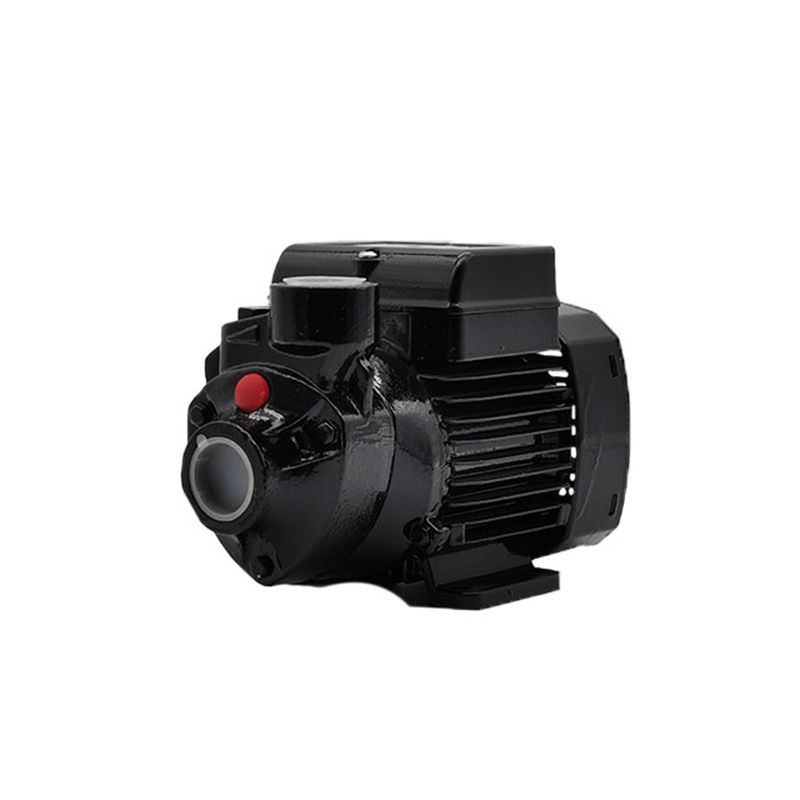

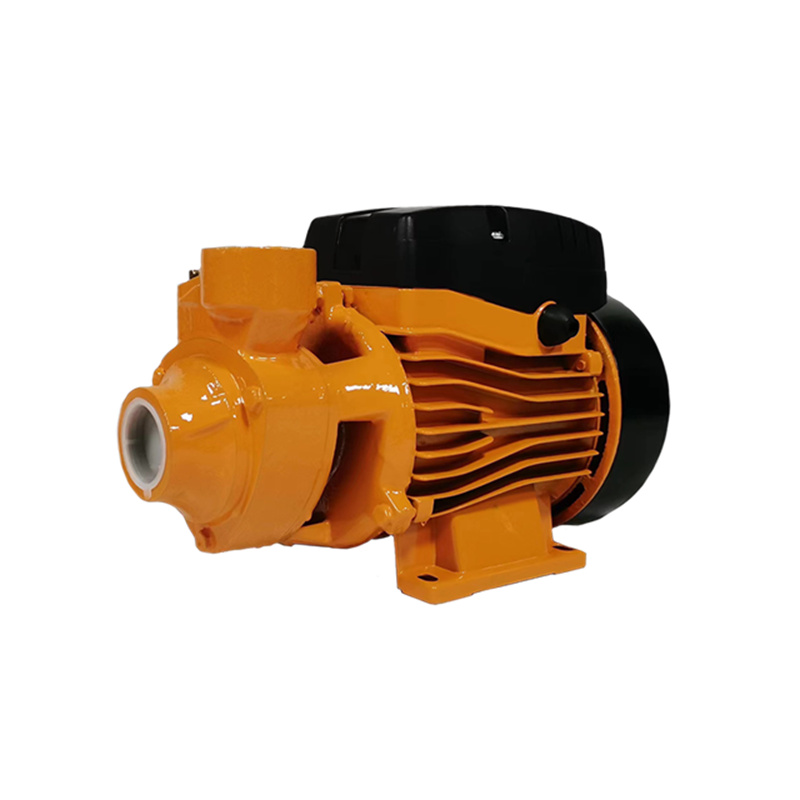

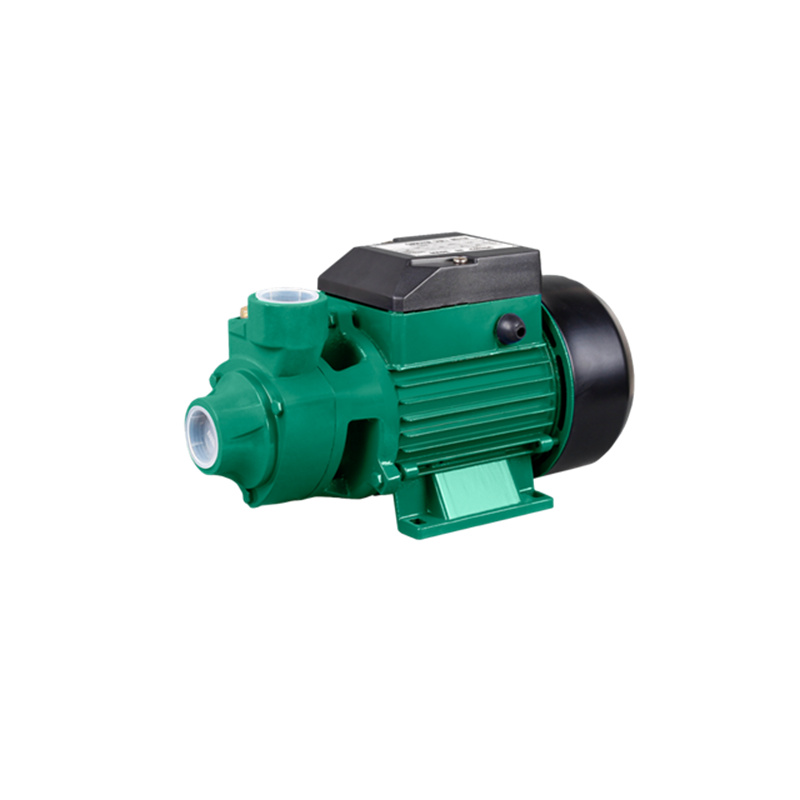

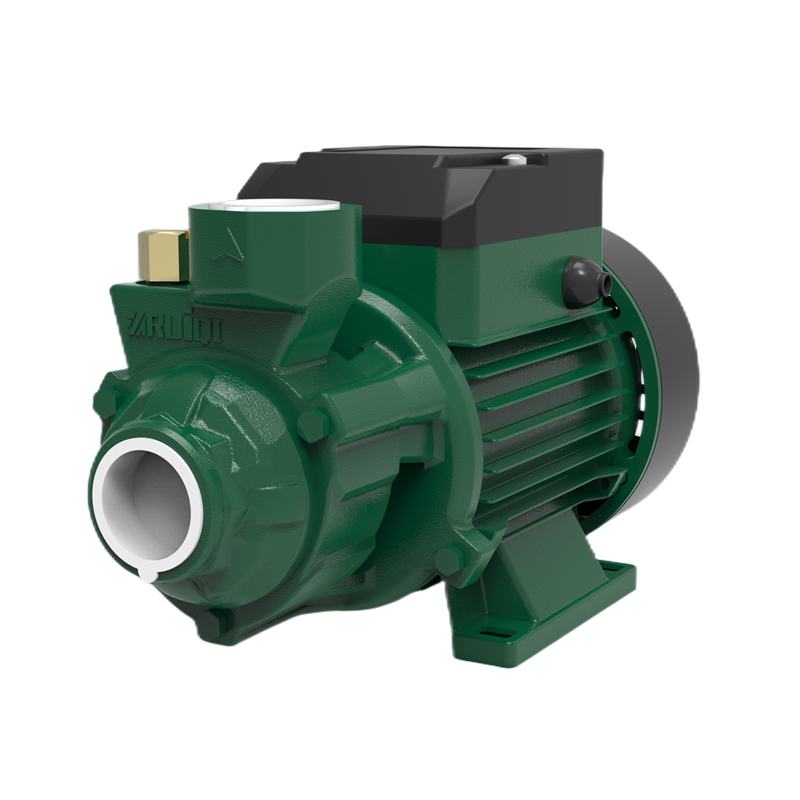

REFERENCE COLORS

product description01
product description06
product description04
product description08
product description02
product description07
product description05
product description03
product-description1

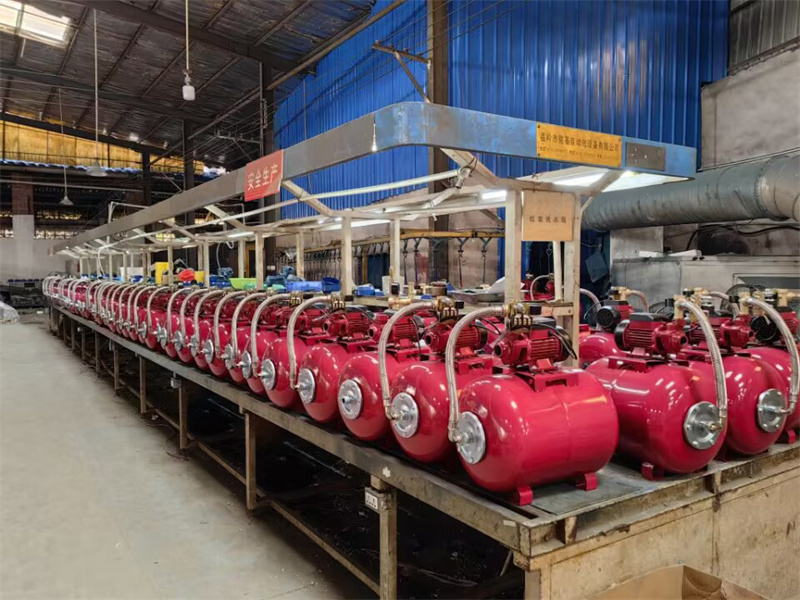

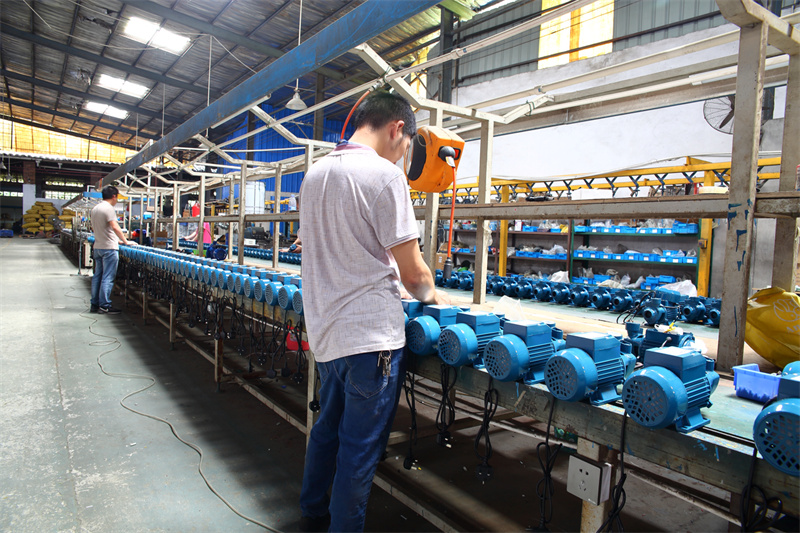

PICTURES OF WORKSHOP

product description02
product description01

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 20~120mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
