0.5HP-2HP JSW SERIES JET SELF PRIMING WAER PUMP

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
JSW-10h 1.1 0.75 1 5.2 45 50 9
JSW-12h 1.3 0.9 1.25 6.2 50 55
JSW-15h 1.5 1.1 1.5 7 55 55
JSW-10m 1.1 0.75 1 5.2 60 40
JSW-12m 1.3 0.9 1.25 6.2 65 45
JSW-15m 1.5 1.1 1.5 7 70 50

Product Detail

Product Tags

APPLICATION

product-description1

JSW series Self-priming Water Pump

JSW series are suitable for pumping clean water.They are particularly suitable for domestic applications such as supply water from well, pool etc .The automatic distribution of water by surge tanks and pressure switch,gardening, and increasing of water pressure.

Operating Conditions

Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty

PUMP

Pump Body: Cast Iron
Impeller: Brass/ Techno-polymer(P.P.O)
Mechanical Seal: Carbon/Ceramic/Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/Stainless Steel
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation

PICTURES OF PUMP

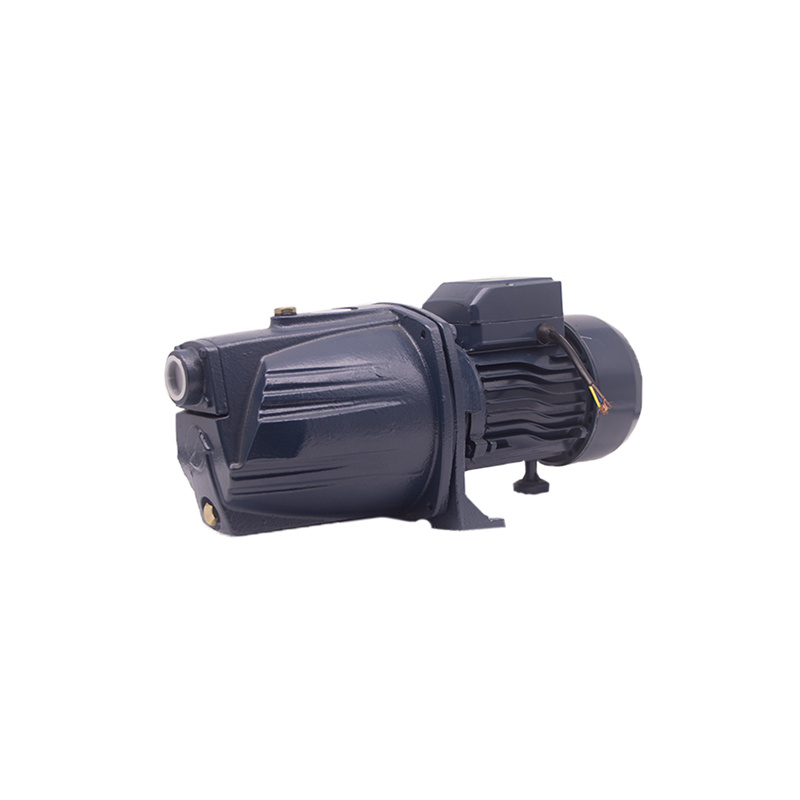

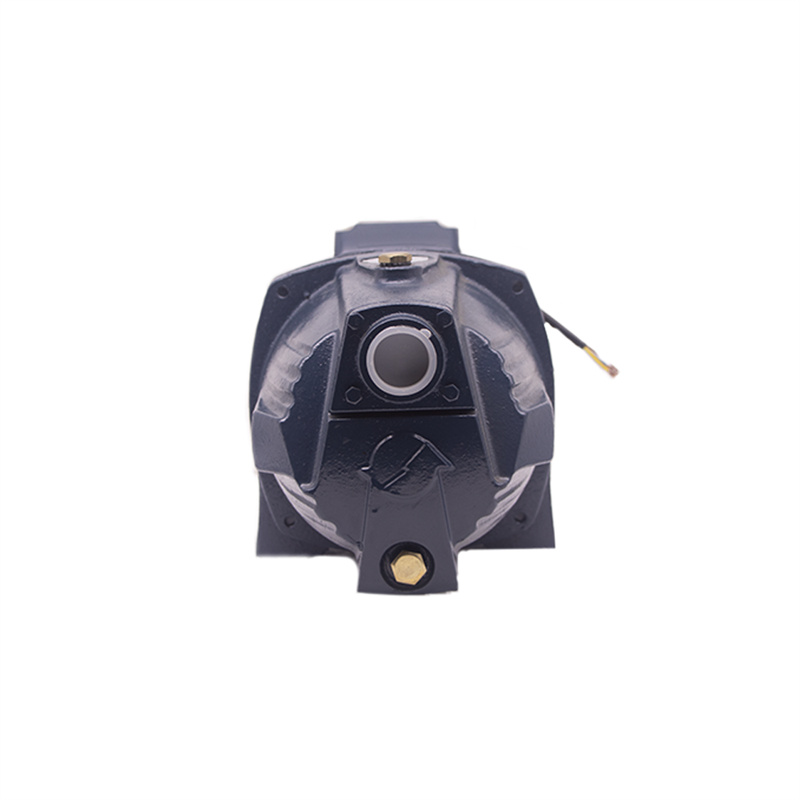

1.5HP 1KW JSW-15HM Self-Priming Water Pump08
1.5HP 1KW JSW-15HM Self-Priming Water Pump07

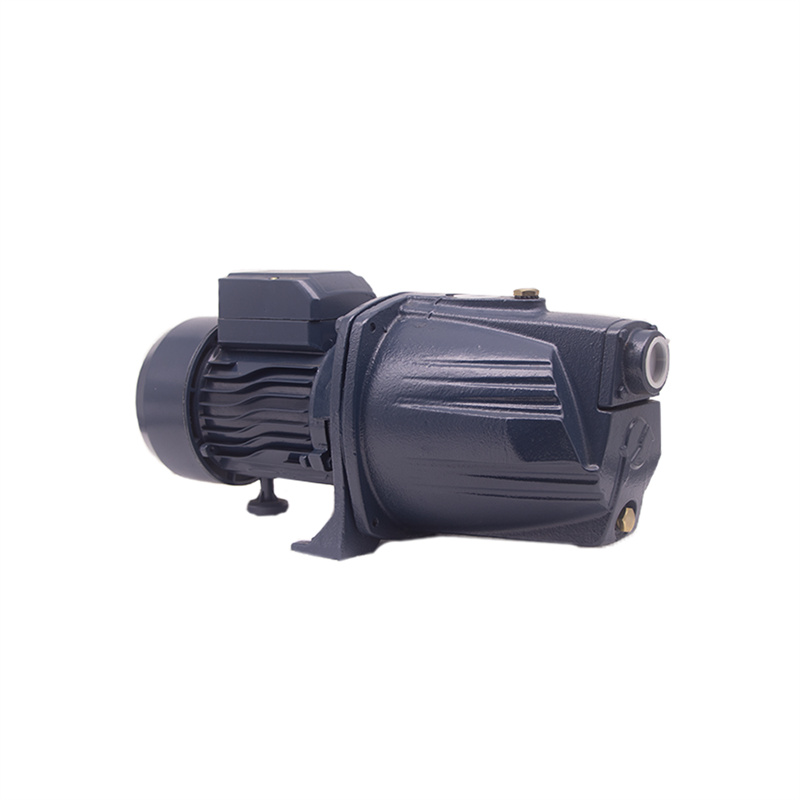

1.5HP 1KW JSW-15HM Self-Priming Water Pump02
1.5HP 1KW JSW-15HM Self-Priming Water Pump01

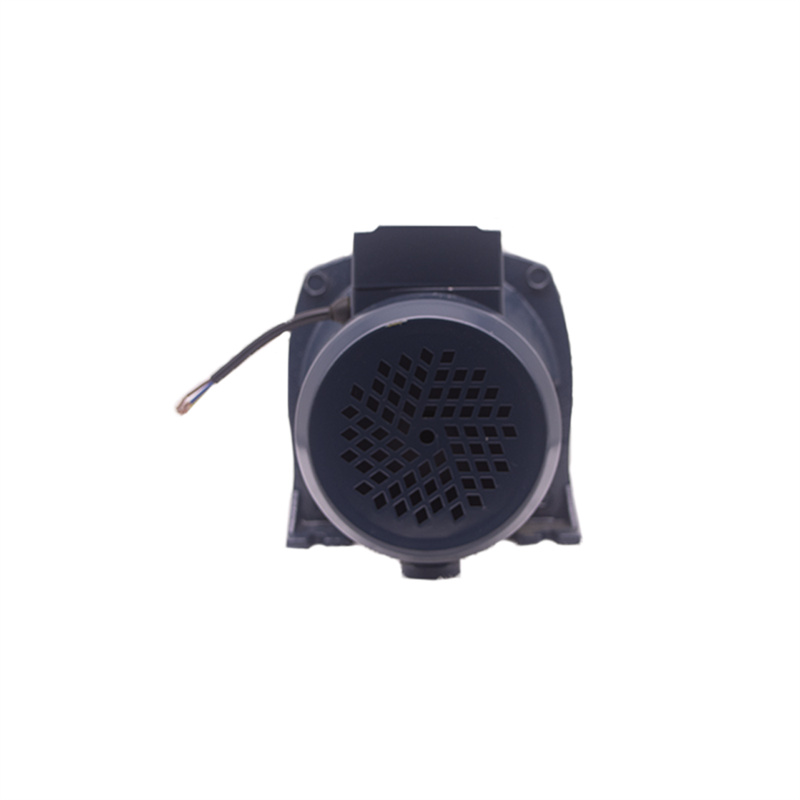

1.5HP 1KW JSW-15HM Self-Priming Water Pump04

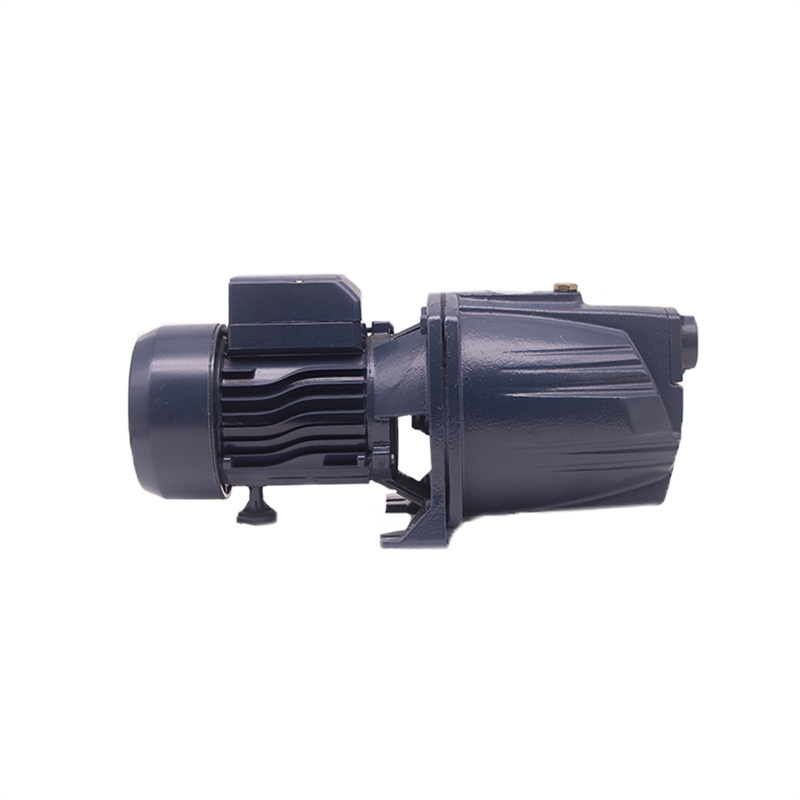

1.5HP 1KW JSW-15HM Self-Priming Water Pump06

PRODUCT SPECIFICATIONS

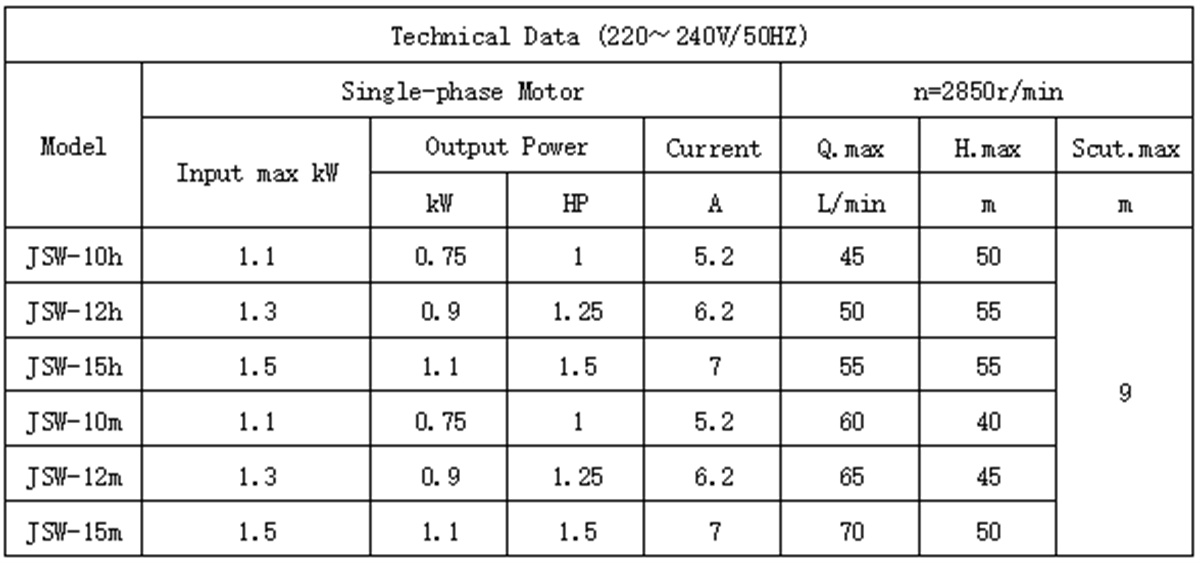

TECHNICAL DATA

product description01

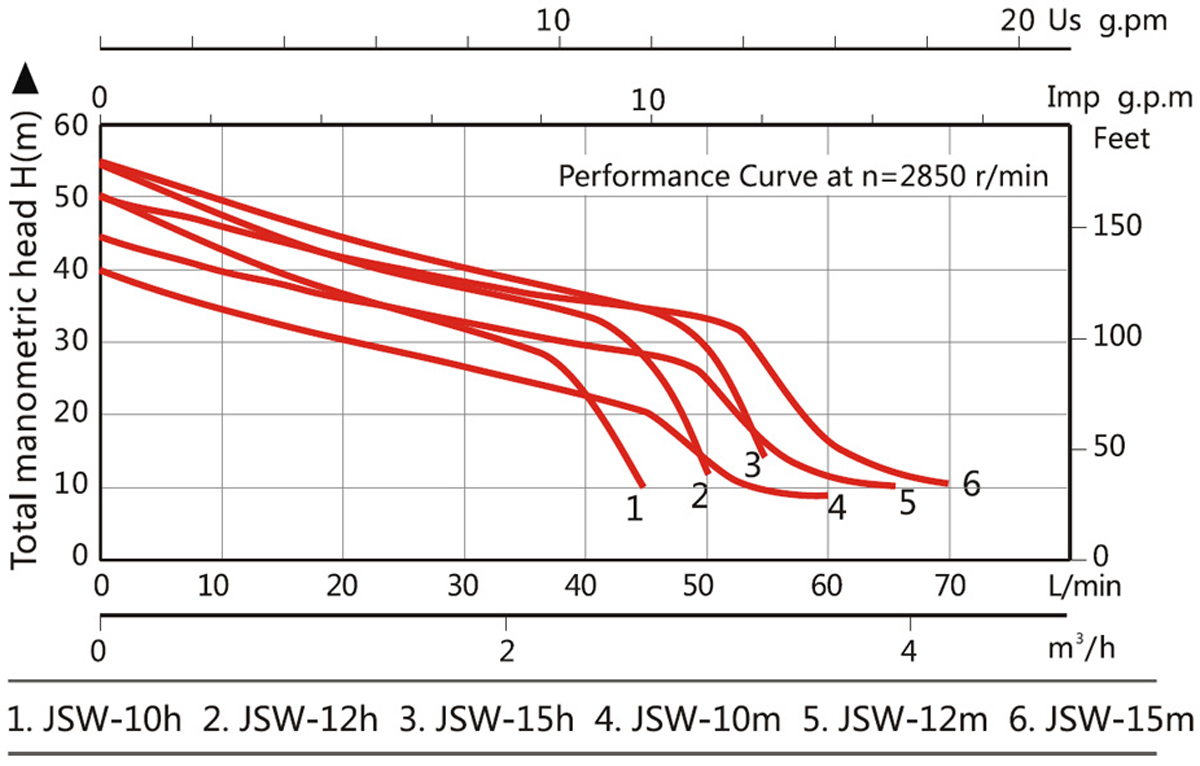

PERFORMANCE CHART AT N=2850min

product-description3

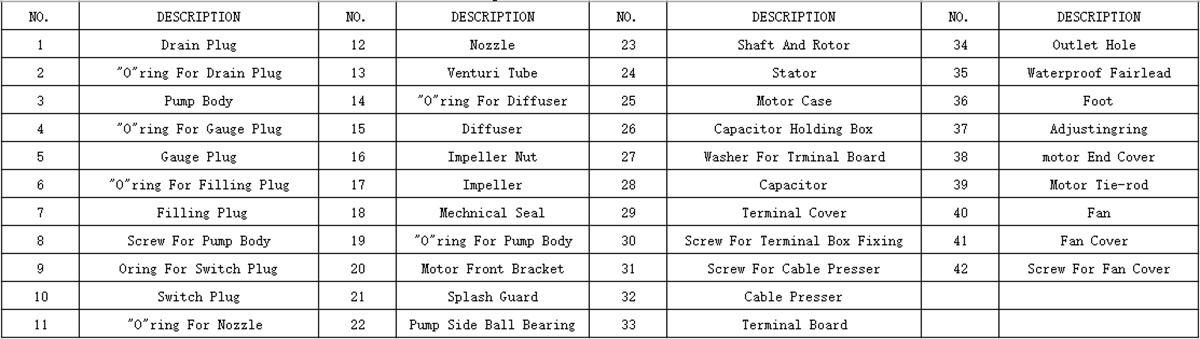

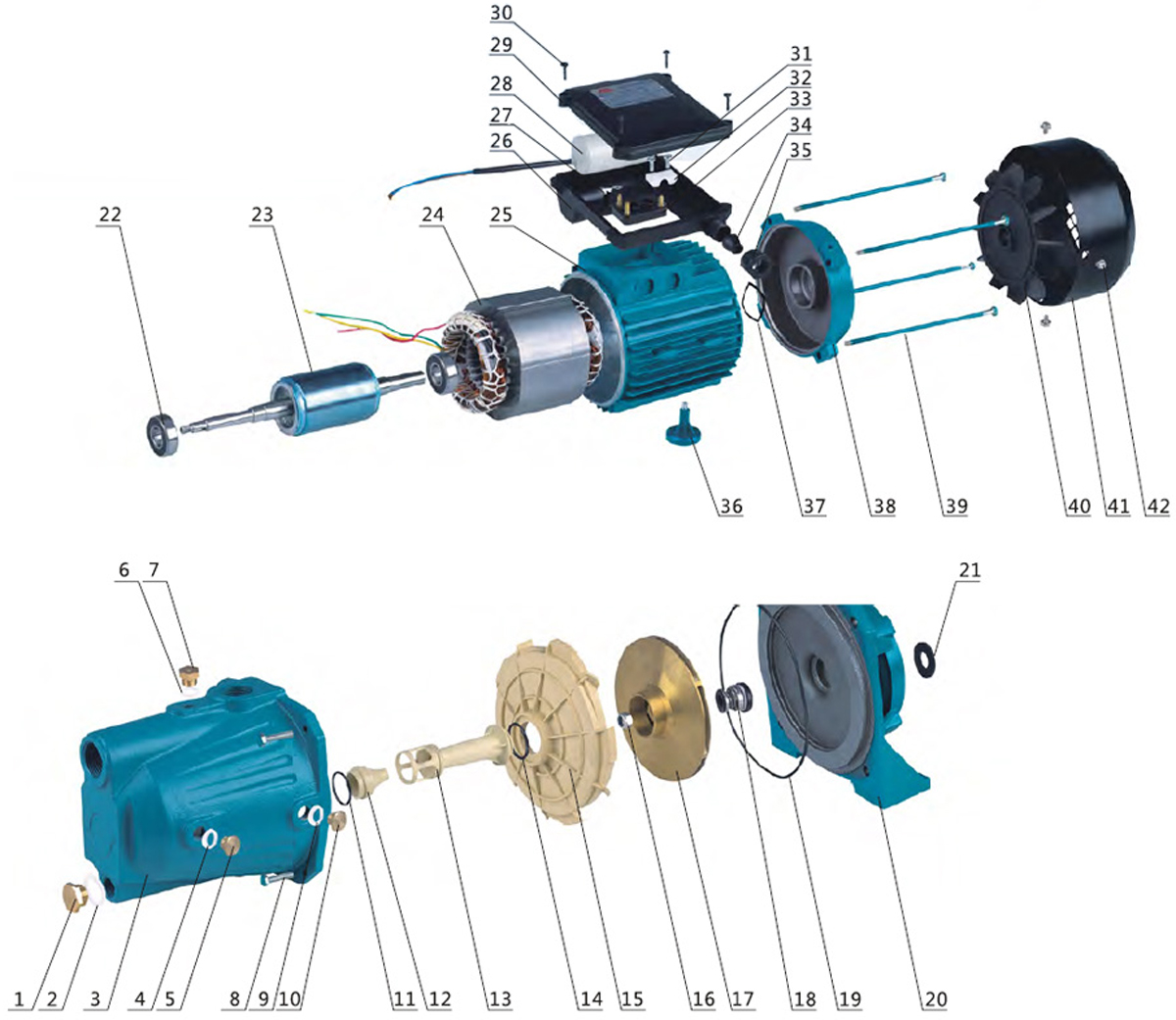

STRUCTURE OF PUMP

product-description1 product description03

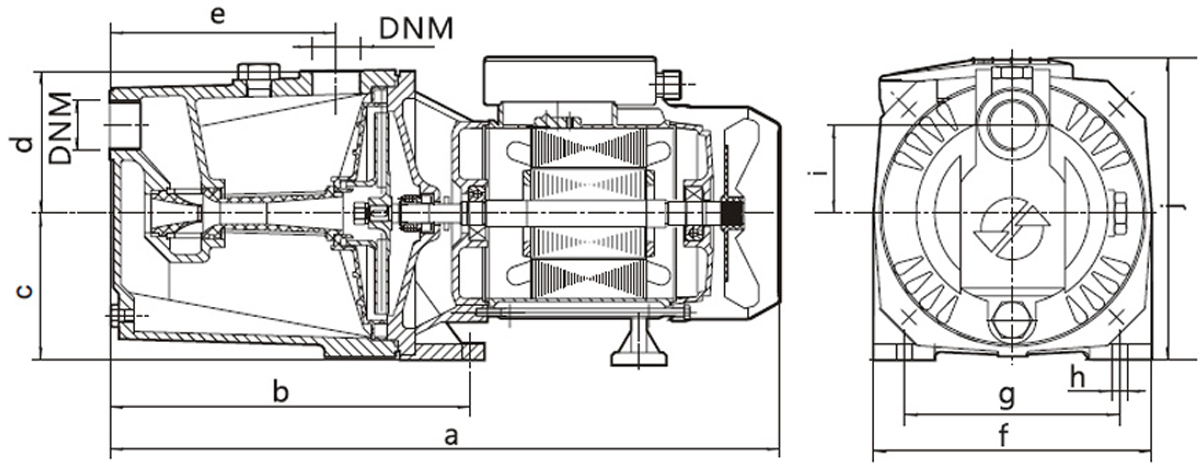

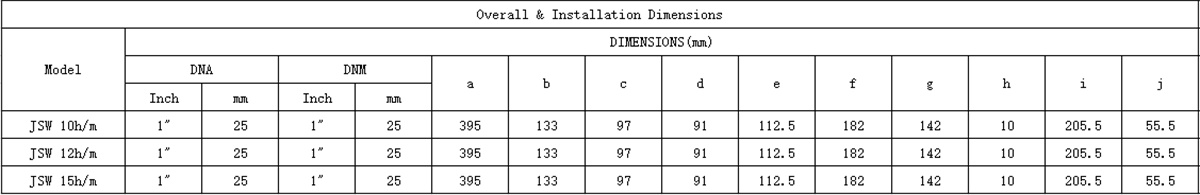

SIZE DETAILS OF PUMP

product-description2 product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 80~100mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
