1.5HP-4.5HP SCM2 Series Dual Stages Centrifugal Water Pump

Short Description:

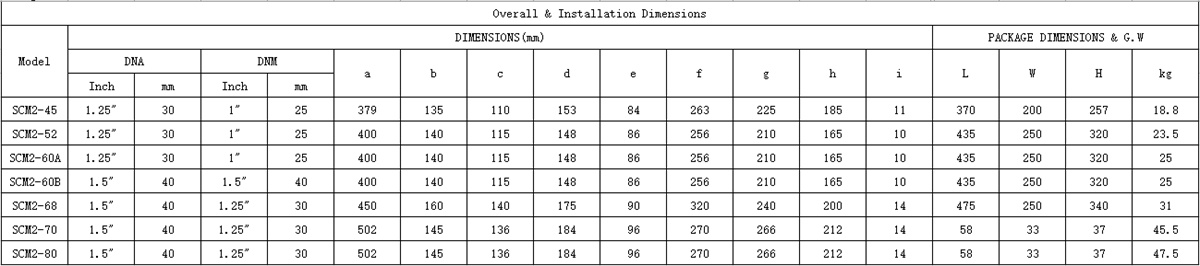

Overall & Installation Dimensions
Model DIMENSIONS(mm) PACKAGE DIMENSIONS & G.W
DNA DNM a b c d e f g h i L W H kg
Inch mm Inch mm
SCM2-45 1.25″ 30 1″ 25 379 135 110 153 84 263 225 185 11 370 200 257 18.8
SCM2-52 1.25″ 30 1″ 25 400 140 115 148 86 256 210 165 10 435 250 320 23.5
SCM2-60A 1.25″ 30 1″ 25 400 140 115 148 86 256 210 165 10 435 250 320 25
SCM2-60B 1.5″ 40 1.5″ 40 400 140 115 148 86 256 210 165 10 435 250 320 25
SCM2-68 1.5″ 40 1.25″ 30 450 160 140 175 90 320 240 200 14 475 250 340 31
SCM2-70 1.5″ 40 1.25″ 30 502 145 136 184 96 270 266 212 14 58 33 37 45.5
SCM2-80 1.5″ 40 1.25″ 30 502 145 136 184 96 270 266 212 14 58 33 37 47.5

Product Detail

Product Tags

Applicable Scene

product-description1

SCM2 series

SCM2 series are dual stage centrifugal pumps with 2 impellers, can be used to transfer clean water or other similar water in physical and chemical properties. It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment, etc.

This state-of-the-art pump is packed with advanced technology and features designed to deliver powerful performance and efficient operation. SCM2 series two-stage centrifugal water pumps provide a high flow output up to 80m³/h and a maximum head of 75 meters. Its durable construction makes it a reliable and rugged choice for commercial and residential applications, including irrigation systems, water supply and booster systems, and HVAC systems.

Additionally, the dual-stage centrifugal water pump has a user-friendly design, includes an easy-to-read control panel, and is optimized for low noise and vibration. It also has a compact size for easy installation and is ideal for all your pumping needs.

The SCM2 Series Dual Stage Centrifugal Water Pumps are designed with premium materials, innovative technology and advanced features to provide superior performance and durability. Its dual-stage design allows for efficient energy use, reducing energy costs and saving you money in the long run. The pump is also equipped with a thermal overload protector to ensure the smooth and safe operation of the pump and prevent damage to the pump due to overheating.

In conclusion, if you are looking for a reliable, high performance and efficient water pump, the SCM2 series double stage centrifugal water pump is the right choice for you. Its advanced features, innovative technology and user-friendly design make it the perfect choice for a variety of applications, and its durability ensures it will last for years. Invest in the best - SCM2 Series Dual Stage Centrifugal Water Pumps.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body: Cast Iron
Impeller: Brass
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Wire: Copper Wire / Aluminum Wire
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

PICTURES OF PUMP

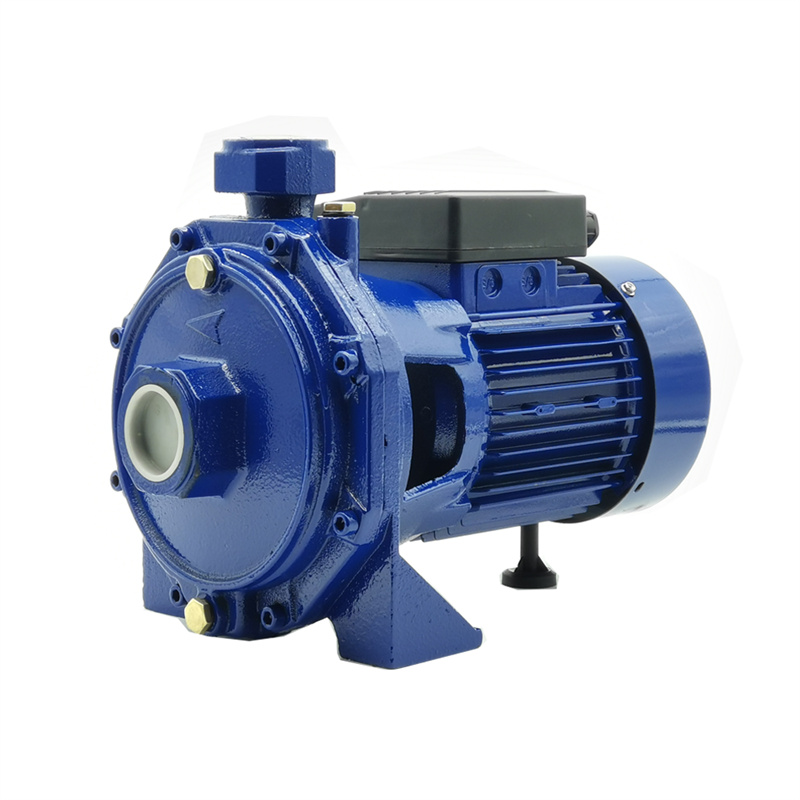

SCM204

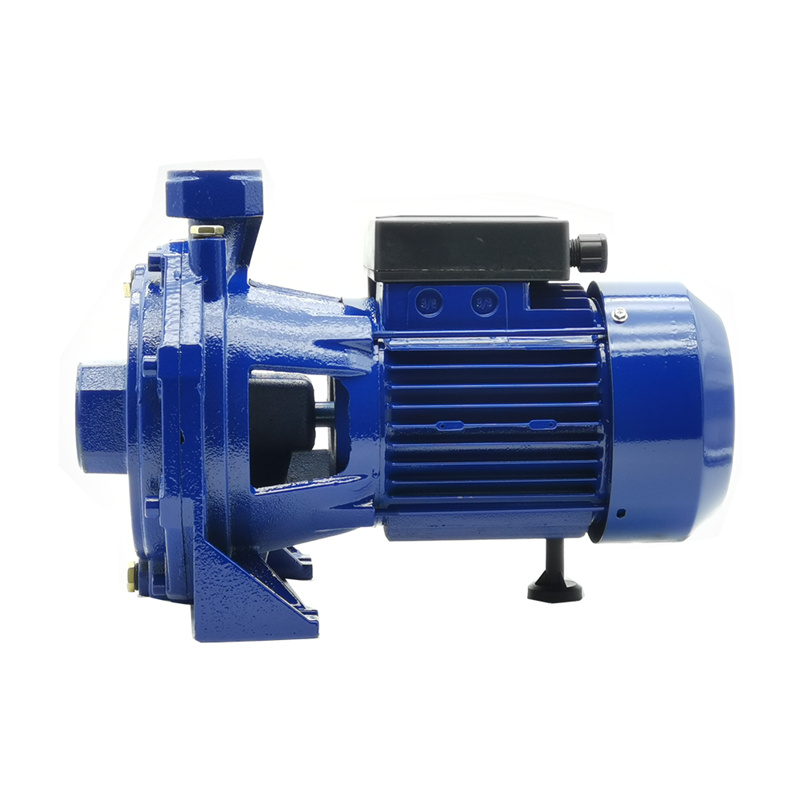

SCM203

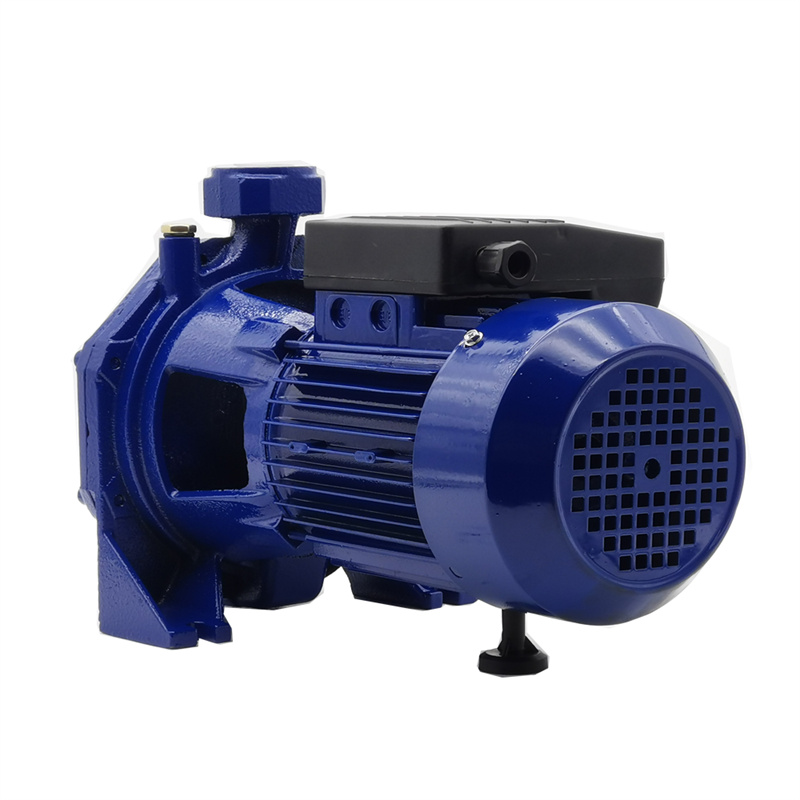

SCM205

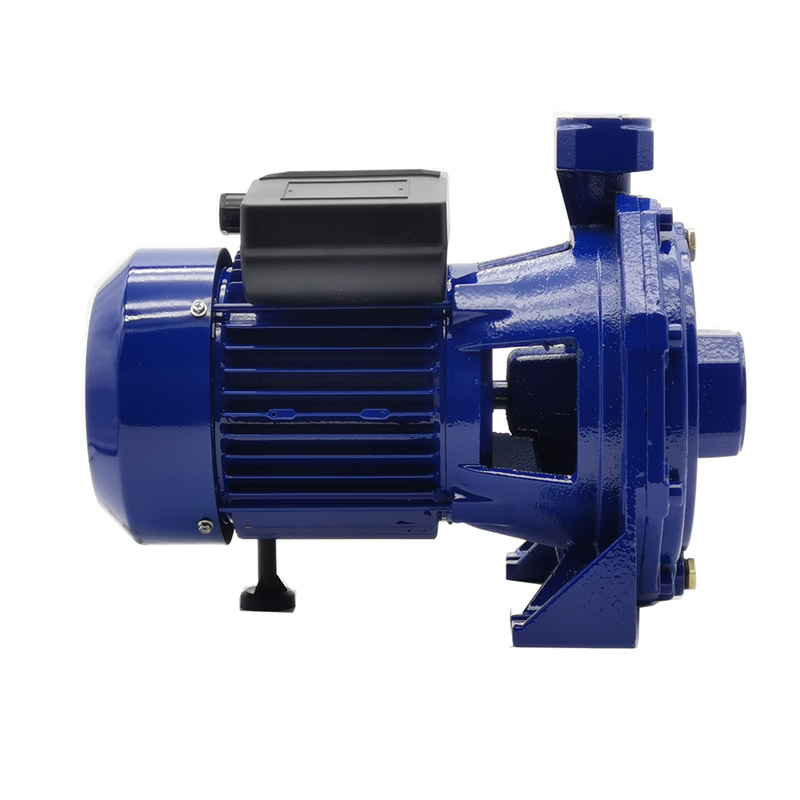

SCM206

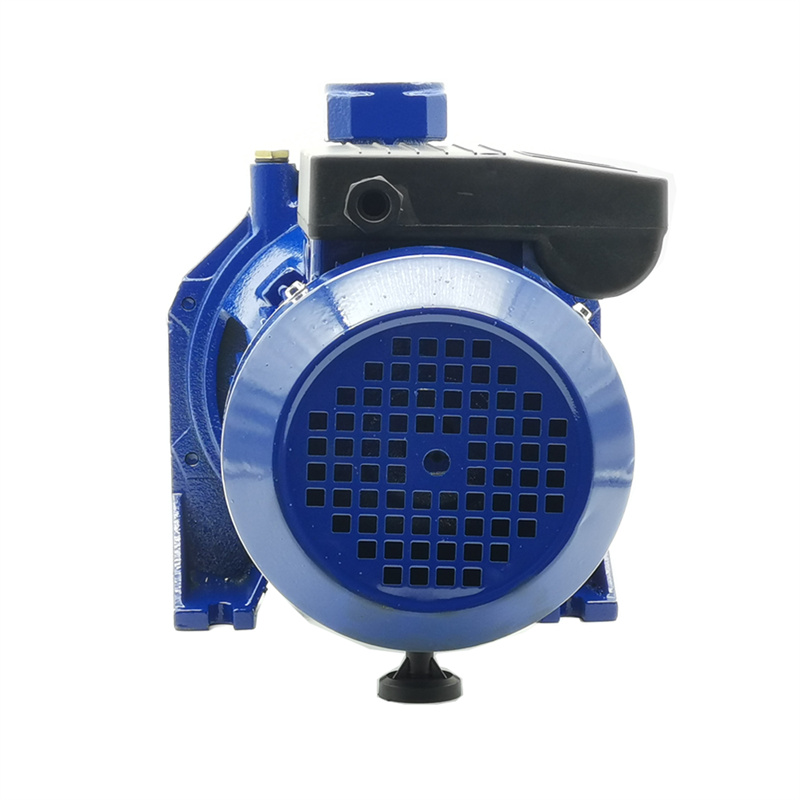

SCM208

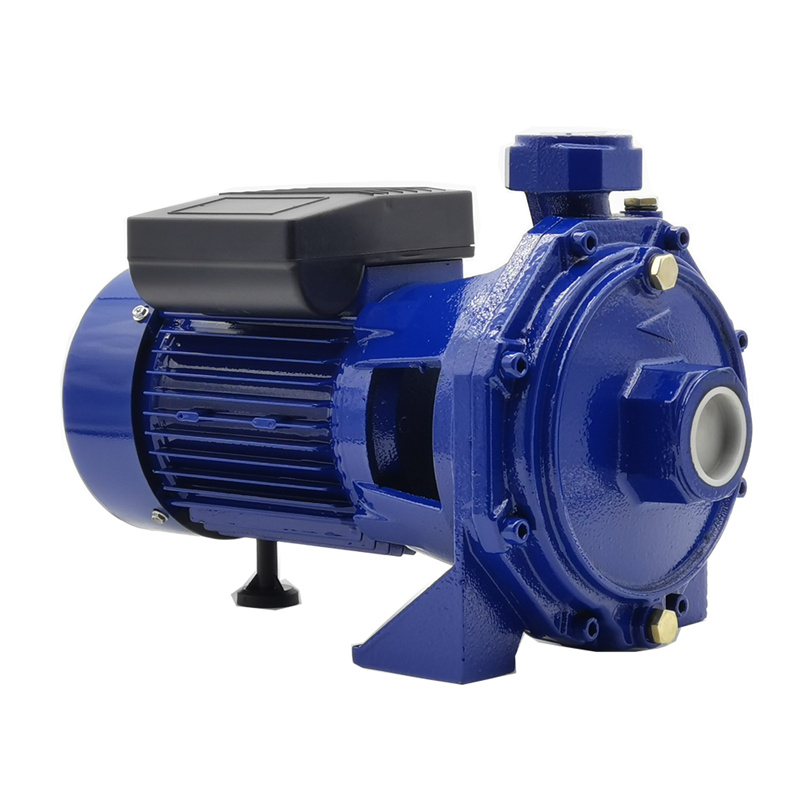

SCM209

PRODUCT SPECIFICATIONS

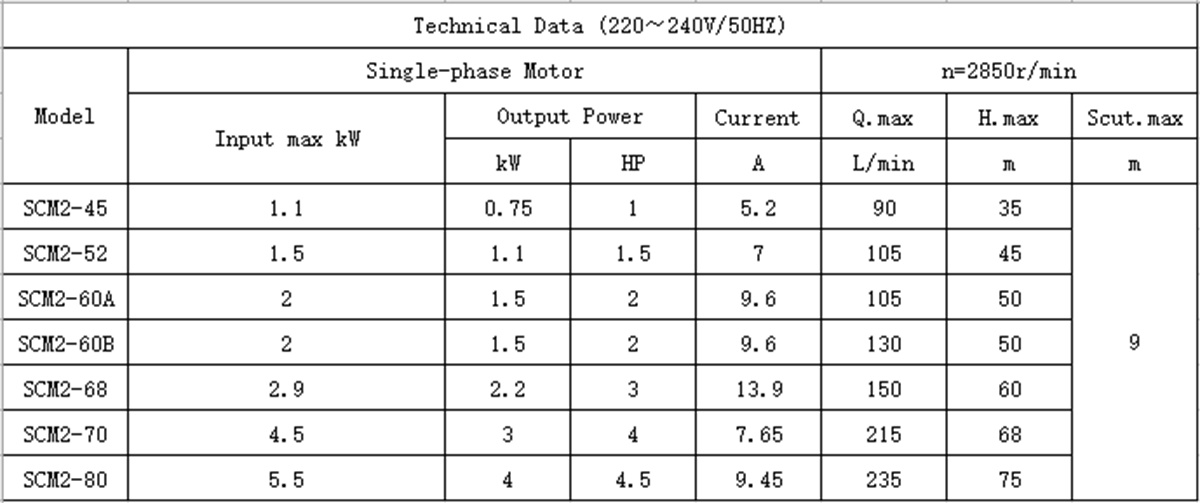

TECHNICAL DATA

product description01

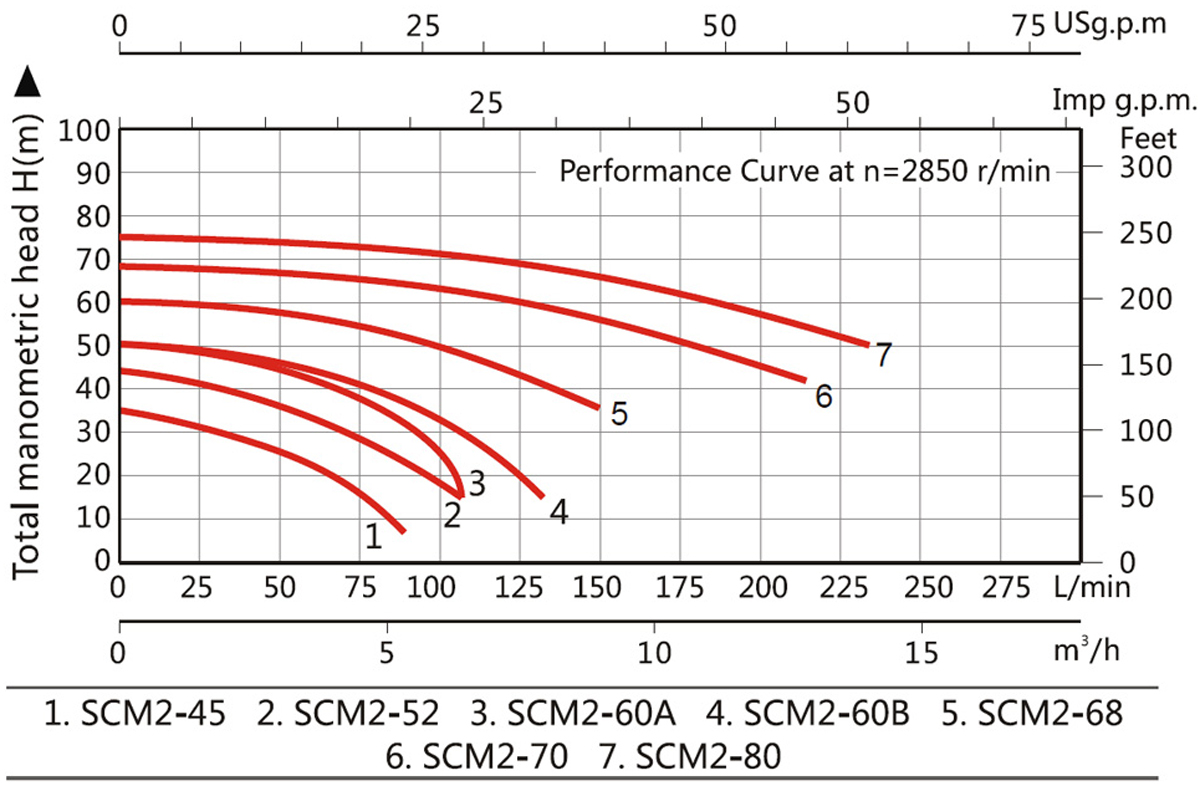

PERFORMANCE CHART AT N=2850min

product-description3

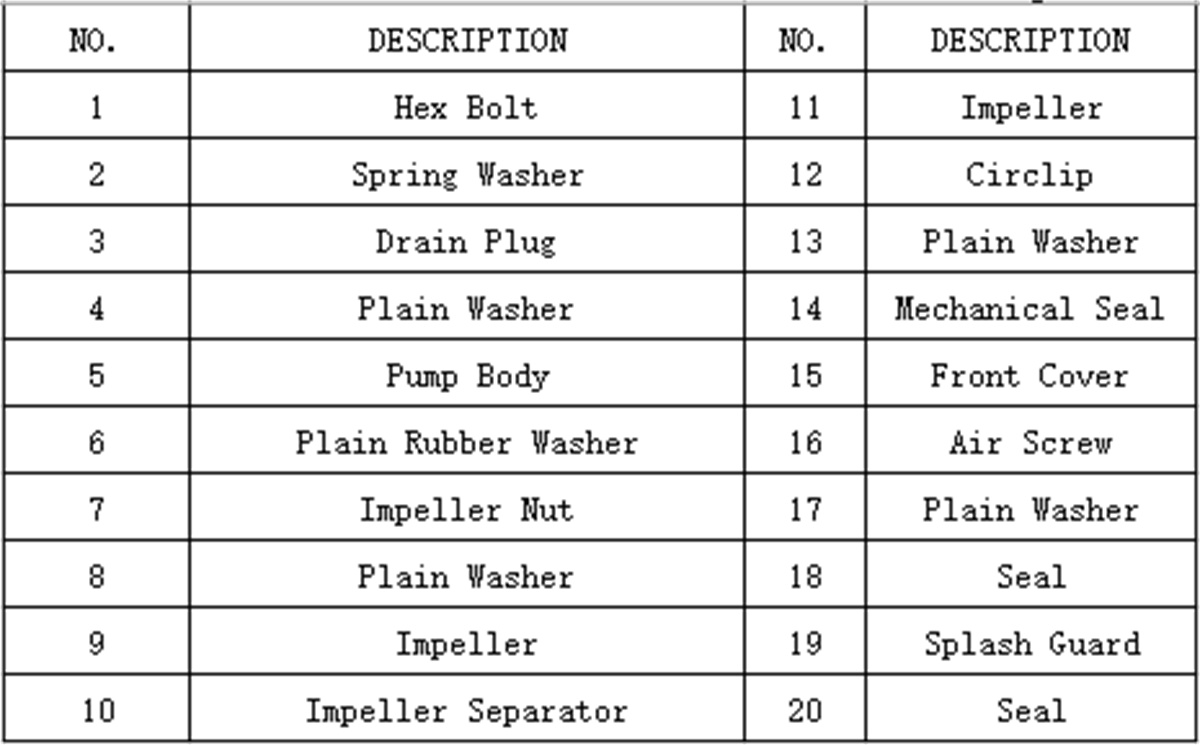

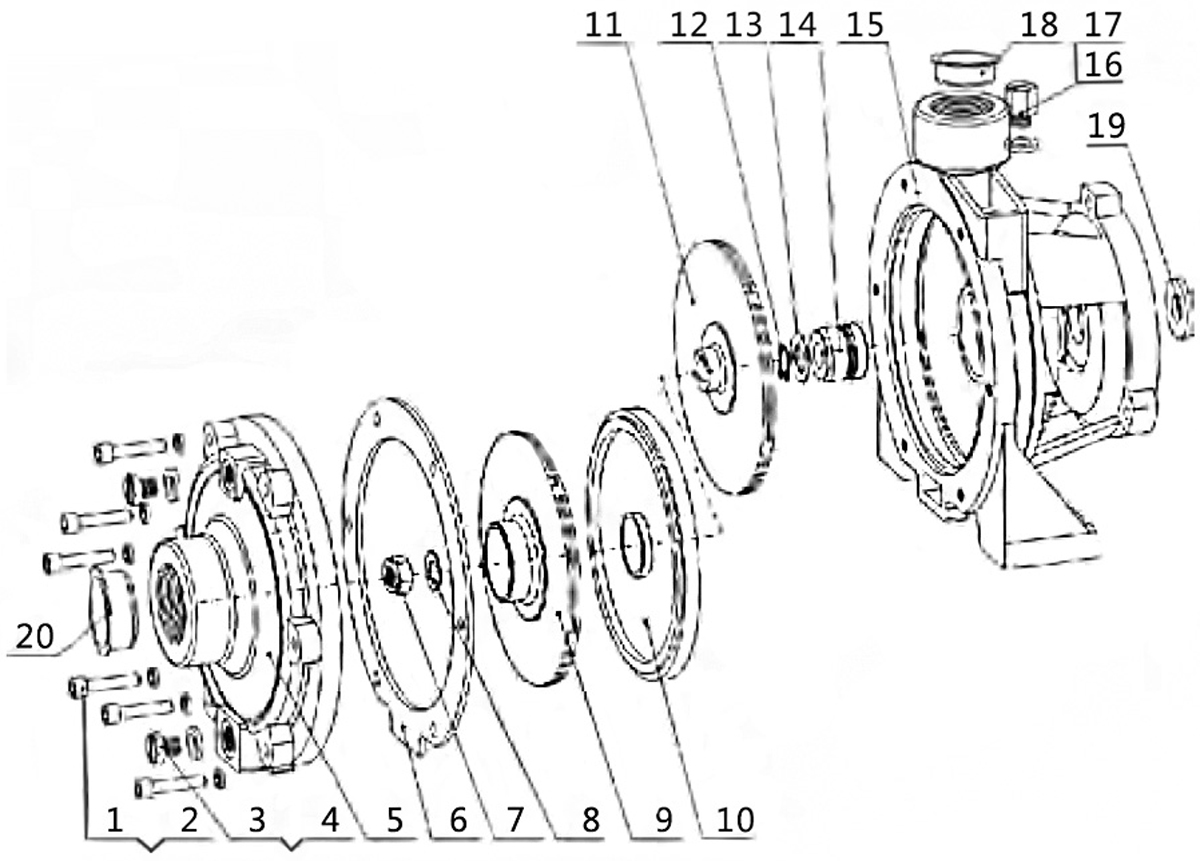

STRUCTURE OF PUMP

product-description2 product description03

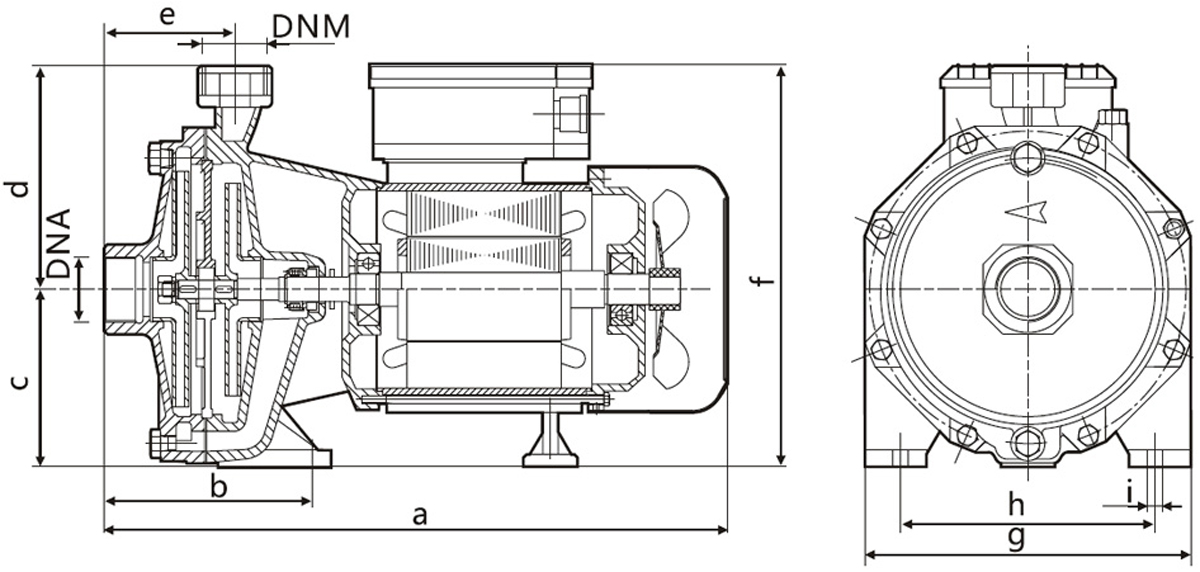

SIZE DETAILS OF PUMP

product-description1 product description02

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 70~200mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
