1.5HP-3HP PX Series Centrifugal Water Pump

Short Description:

Technical Data (220~240V/50HZ)
Model Single-phase Motor n=2850r/min
Input max kW Output Power Current Q.max H.max Scut.max
kW HP A L/min m m
PX-201 0.8 0.55 0.75 3.8 105 16 9
PX-203 1.1 0.75 1 5.2 180 16
PX-204 1.5 1.1 1.5 7 230 16
PX-205 2.1 1.5 2 9.6 310 18
PX-207 2.9 2.2 3 17.1 800 20

Product Detail

Product Tags

Applicable Scene

product-description1

PX series

Introducing the PX Centrifugal Pump, a versatile and reliable pumping solution for your industrial and commercial needs. Designed with precision engineering and cutting-edge technology, this pump is capable of delivering exceptional performance and efficiency, making it the ideal choice for a diverse range of applications.

At the heart of the PX Centrifugal Pump is a high-performance impeller that provides optimal flow rates and head pressures, enabling you to move fluids with ease and precision. The impeller is made from high-quality materials that ensure durability and resistance to wear and corrosion, making it an ideal choice for harsh and demanding environments.

The motor of the PX Centrifugal Pump is designed to deliver efficient and continuous operation, with a range of options available to suit your specific requirements. Whether you need a high-speed motor for rapid fluid transfer, or a low-speed motor for delicate applications, the PX Centrifugal Pump has you covered.

The PX Centrifugal Pump also boasts a compact and lightweight design, making it easy to transport, install, and operate. It is also easy to maintain and clean, with a simple yet robust construction that helps to reduce downtime and operational costs.

Overall, if you're in need of a highly-efficient, reliable and versatile pumping solution for your industrial or commercial applications, look no further than the PX Centrifugal Pump. With its exceptional performance and ease of use, it is sure to meet all your fluid transfer needs, no matter how tough or challenging they may be.

WORKING CONDITIONS

Max Suction: 8M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

PUMP

Pump Body : Cast Iron
Impeller: Brass
Mechanical Seal: Carton / Ceramic / Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Wire: Copper Wire / Aluminum Wire
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

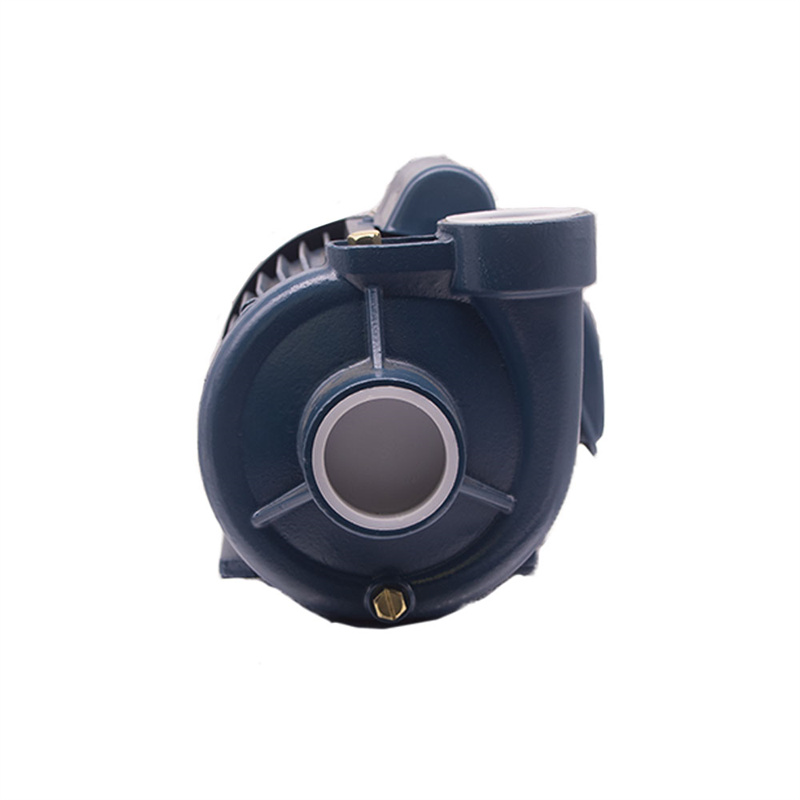

PICTURES OF PUMP

1.5HP 1KW PX-205 Centrifugal Water Pump06
1.5HP 1KW PX-205 Centrifugal Water Pump05

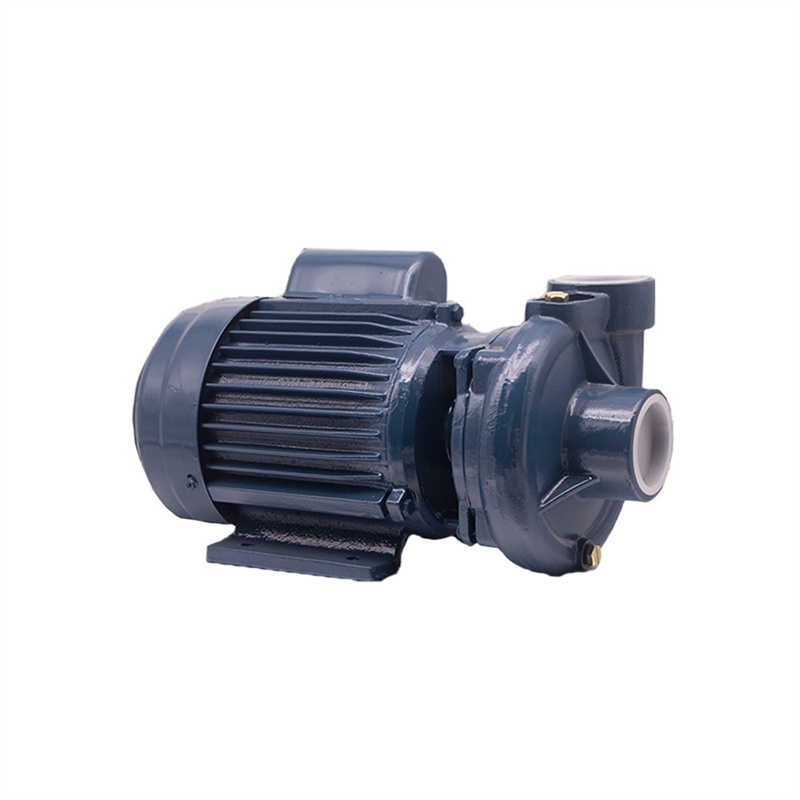

1.5HP 1KW PX-205 Centrifugal Water Pump04

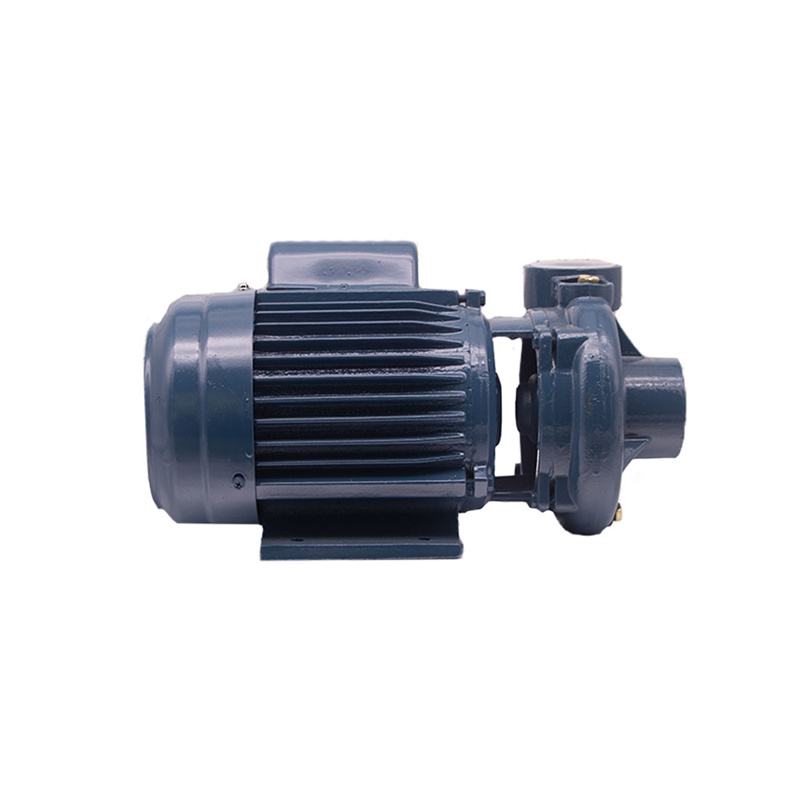

1.5HP 1KW PX-205 Centrifugal Water Pump03

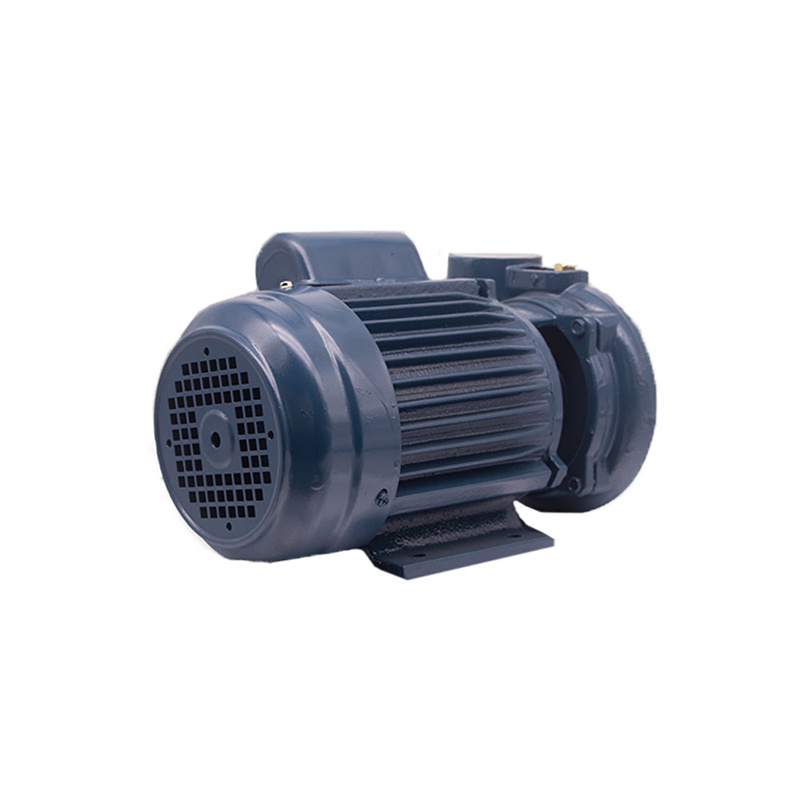

1.5HP 1KW PX-205 Centrifugal Water Pump02

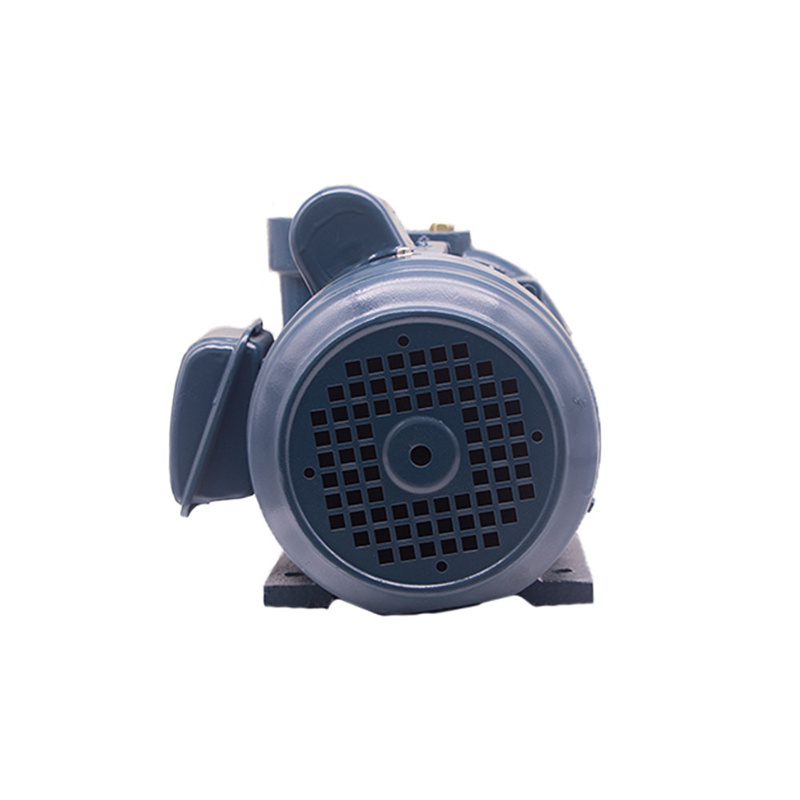

1.5HP 1KW PX-205 Centrifugal Water Pump01

PRODUCT SPECIFICATIONS

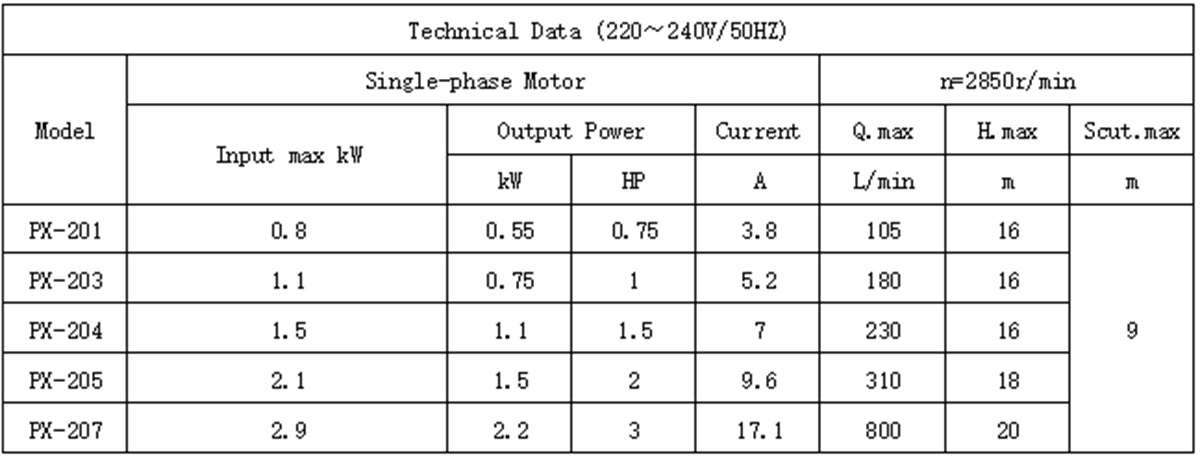

TECHNICAL DATA

product description02

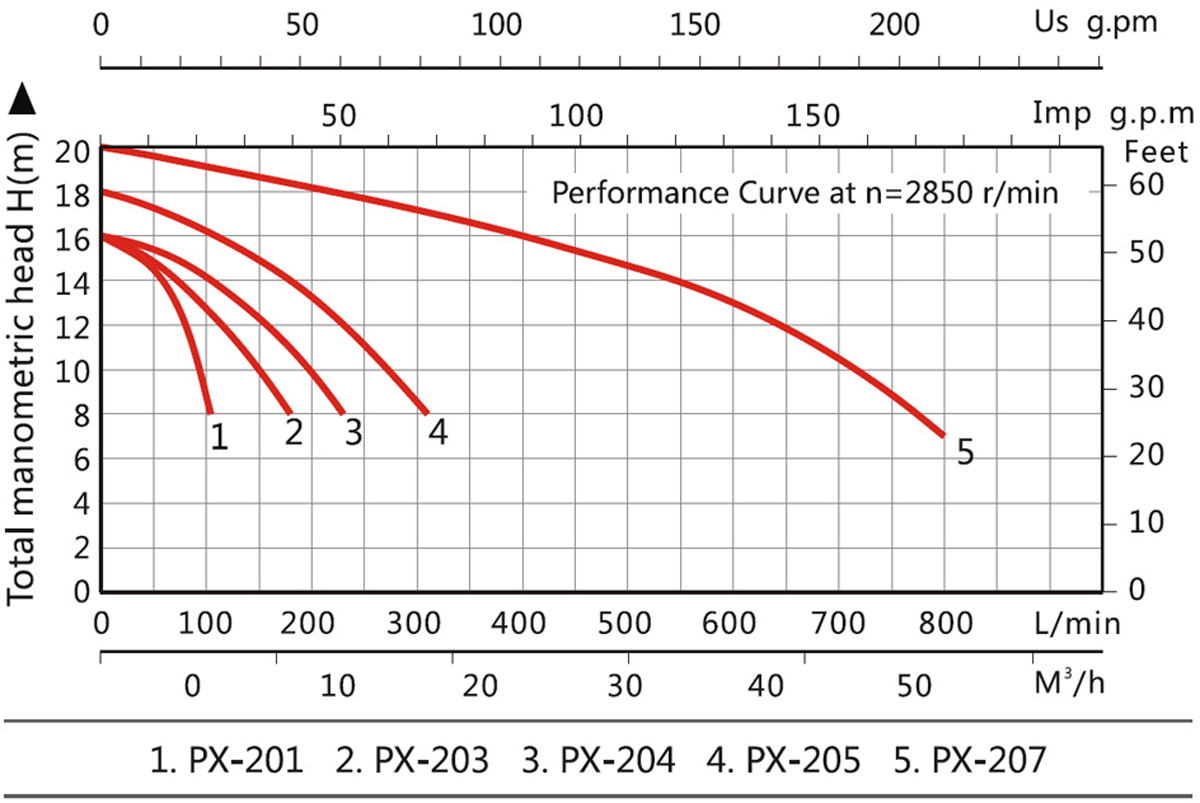

PERFORMANCE CHART AT N=2850min

product-description3

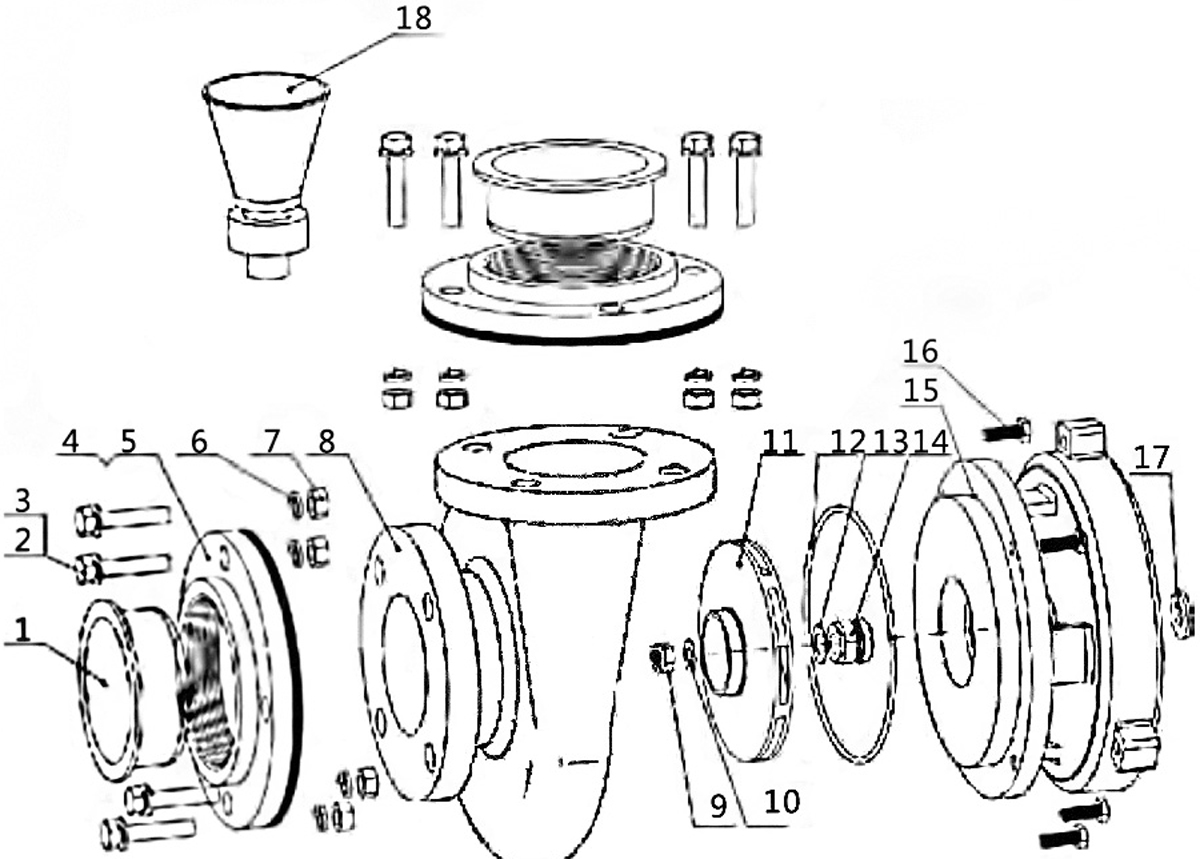

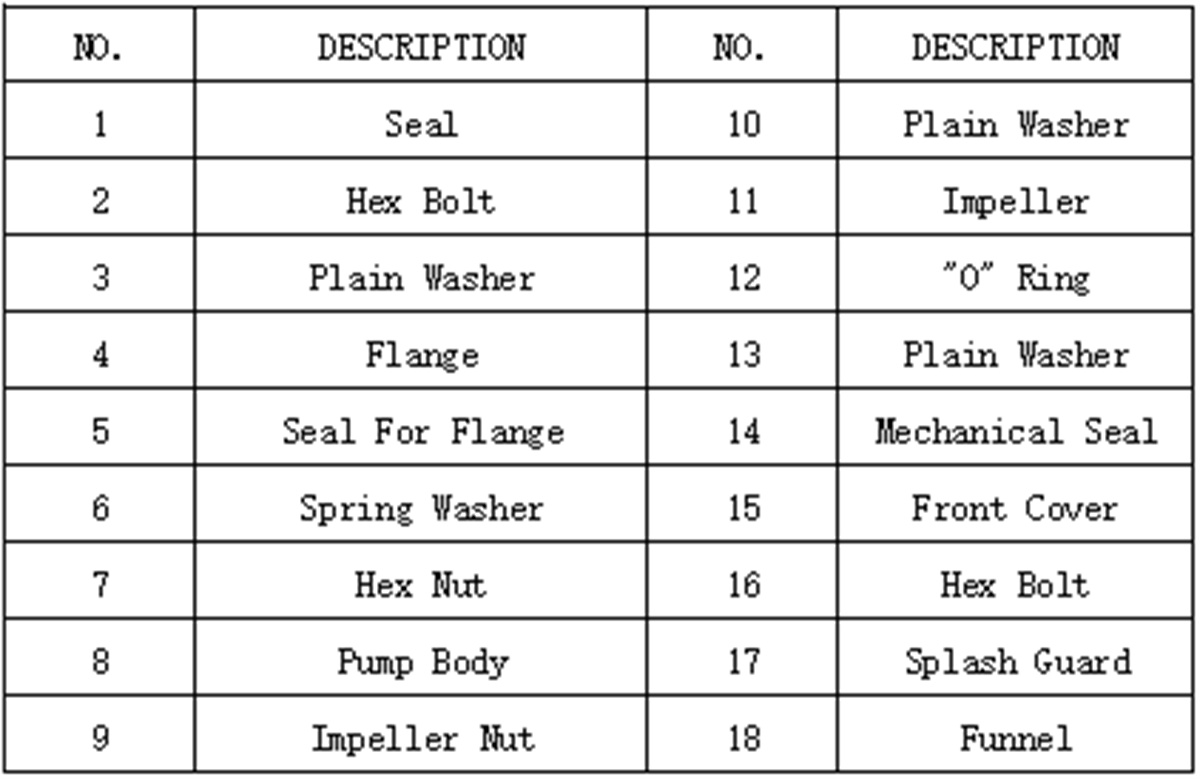

STRUCTURE OF PUMP

product-description2product description01

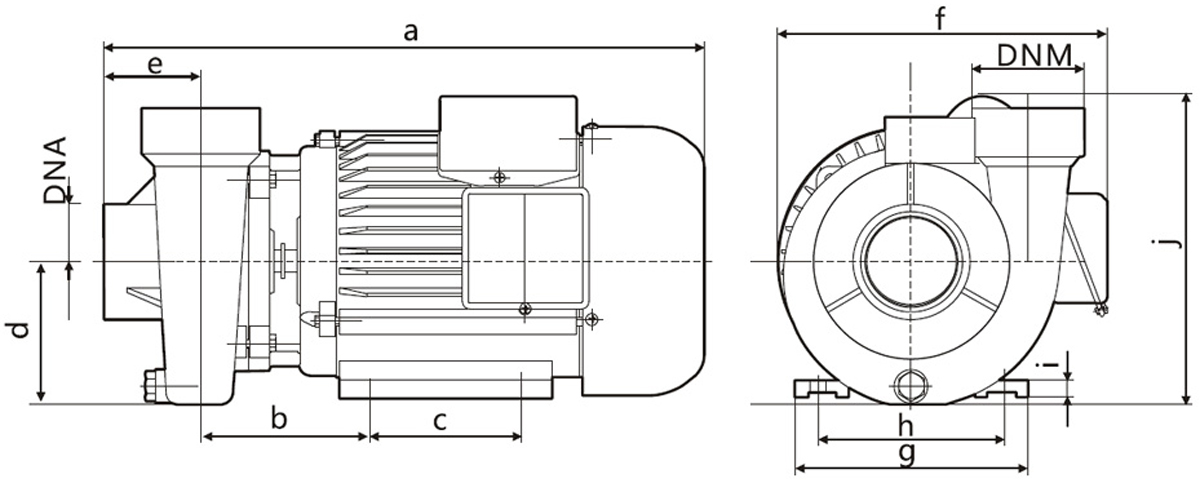

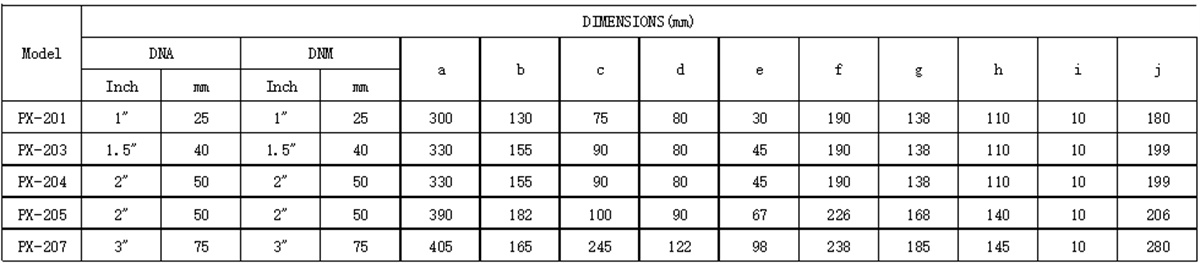

SIZE DETAILS OF PUMP

product-description1 product description03

Custom service

Color Blue, green, orange, yellow, or Pantone color card
Carton Brown corrugated box, or color box(MOQ=500PCS)
Logo OEM(YOUR BRAND with authority document), or our brand
Coil/Rotor length length from 70~180mm, you could select them according to your request.
Thermal Protector Optional part
Terminal Box different types for your selection
