Japan technology Automatic Intelligent self priming Pump EP
Short Description:
Technical Data (220～240V/50HZ)
| MODEL | Power | Current | Q.max(L/min) | H.max(m) | S.max(m) | Carton sizeL*W*H(mm) |
| EP155 |
150w |
1.2 | 28 | 35 | 9 | 395*340*355 |
| EP205 | 200w | 1.2 | 33 | 40 | 9 | 395*340*355 |
| EP255 | 250w | 2.3 | 36 | 43 | 9 | 395*340*355 |
| EP305 | 300w | 2.3 | 40 | 45 | 9 | 395*340*355 |
APPLICATION
EP Series
The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller to generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.
Working Situation
Max Suction: 9M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty
PUMP
Pump Body: 100% brass
Impeller: 100% brass
Shaft: Stainless steel
Wire:100% copper
MOTOR
Single Phase
Heavy Duty Continuous Work
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation

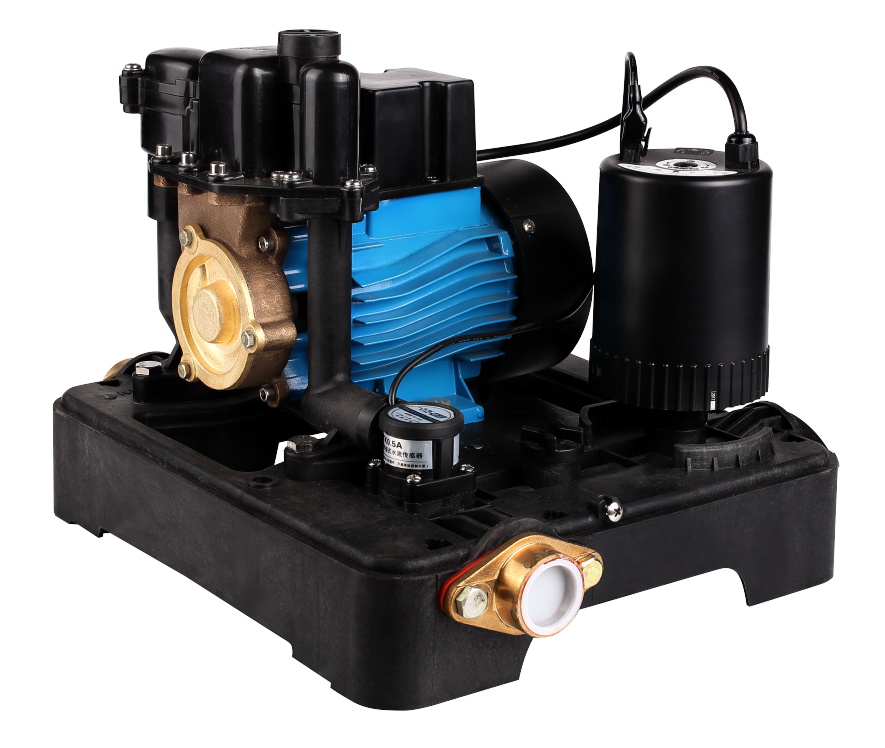

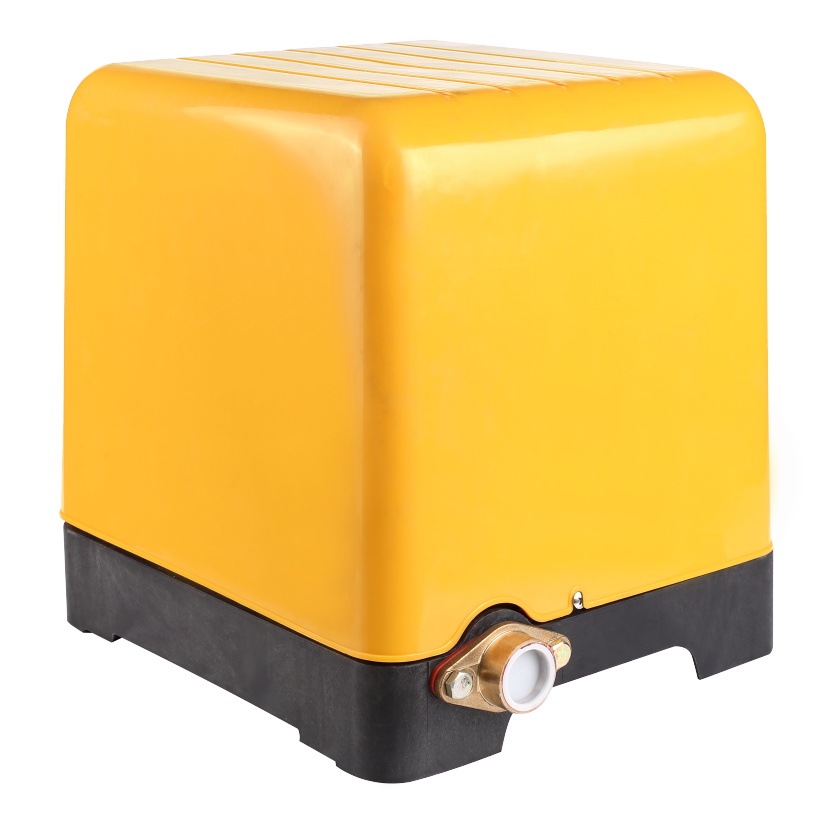

PICTURES OF PUMP
