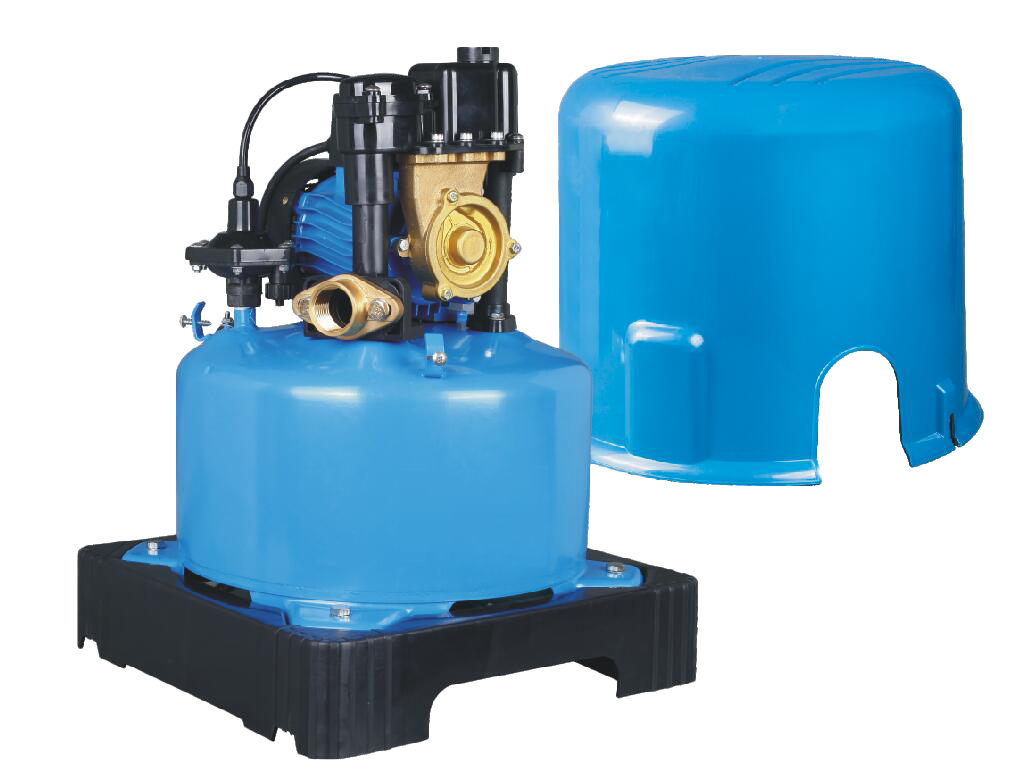

EP Series

The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller to generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.

Max Suction: 9M
Max Liquid Temperature: 60○C
Max Ambient Temperature: +40○C
Continuous duty

Pump Body: 100% brass
Impeller: 100% brass

Shaft: Stainless steel

Wire:100% copper

MOTOR

Single Phase
Heavy Duty Continuous Work
Insulation: Class B/Class F
Protection: IP44/IP54
Cooling: External Ventilation
